Locknut Installation Note

  1. Install a new locknut and stake it as shown.

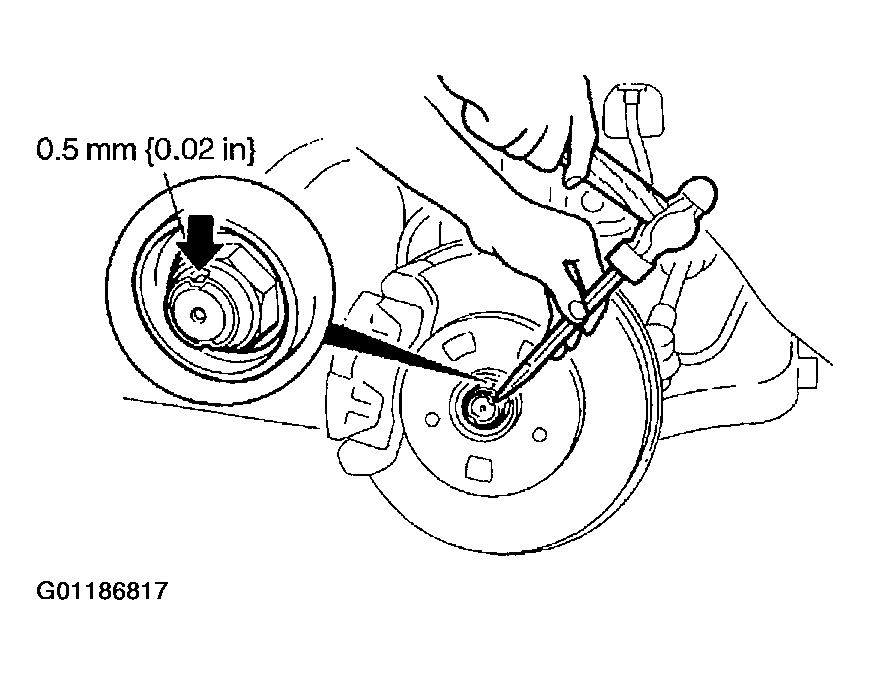

    Fig 1: Installing & Staking New Locknut
    G01186817Courtesy of MAZDA MOTORS CORP.
