Wheel Hub Bolt Replacement

  1. Remove the hub bolt using the SSTs  .

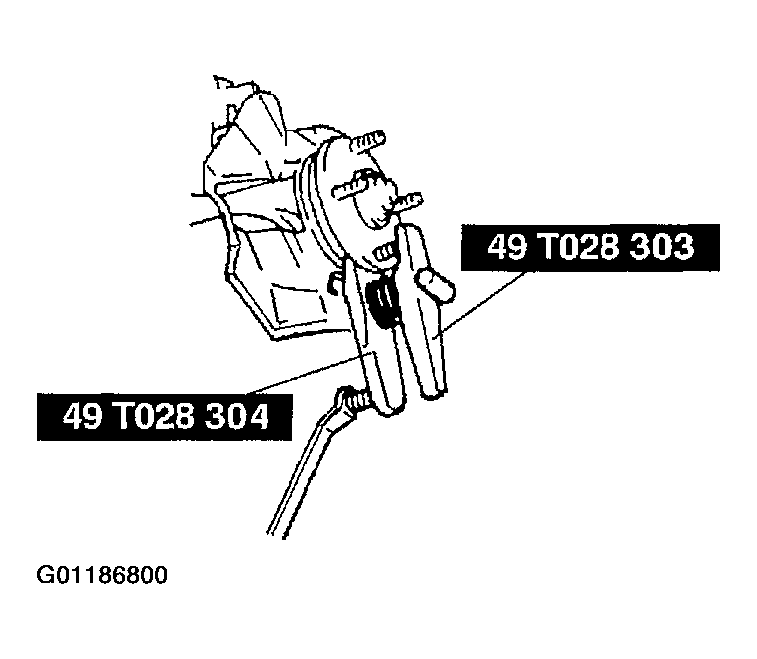

    Fig 1: Removing Hub Bolt
    G01186800Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • If the dust cover interferes with the wheel hub bolt and the wheel hub bolt cannot be removed, tap the part shown in the figure with a chisel lightly and bend the processing point back to the steering knuckle side.

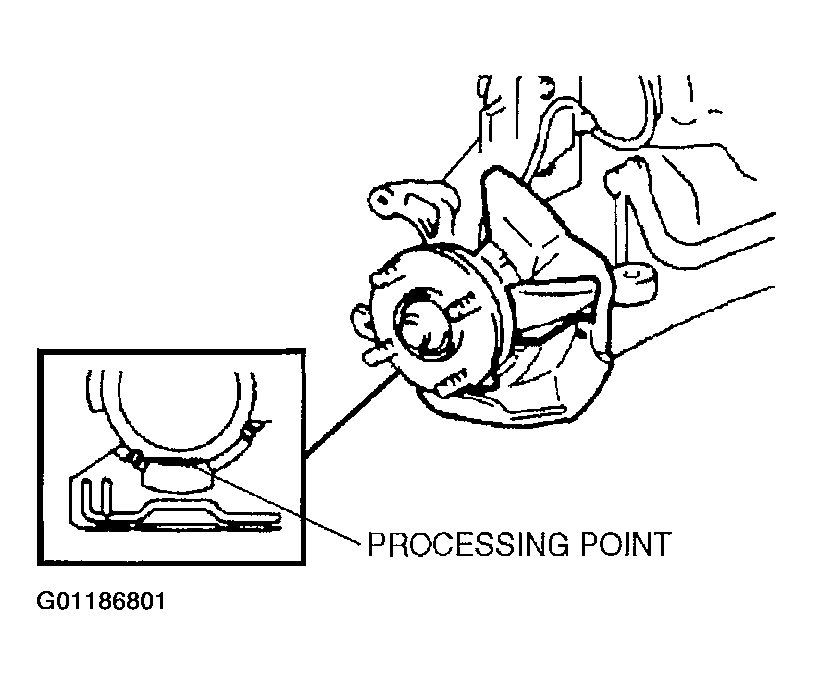

      Fig 2: Identifying Processing Point
      G01186801Courtesy of MAZDA MOTORS CORP.
  2. Install the hub bolt into the wheel hub and install a washer and hub nut on the hub bolt.
  3. Tighten the hub nut while holding the wheel hub using a brass bar.

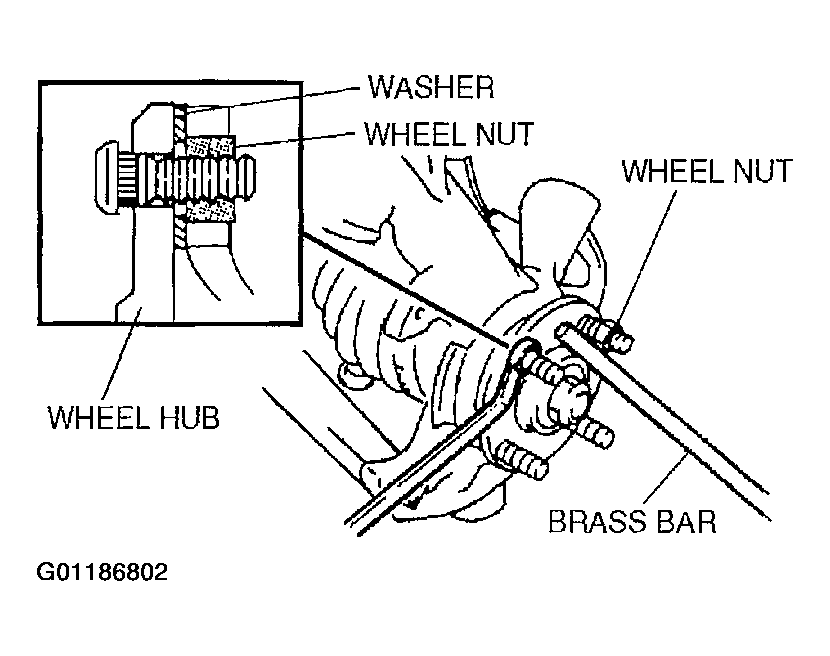

    Fig 3: Tightening Wheel Hub Nut
    G01186802Courtesy of MAZDA MOTORS CORP.
