Shift Speed Specifications

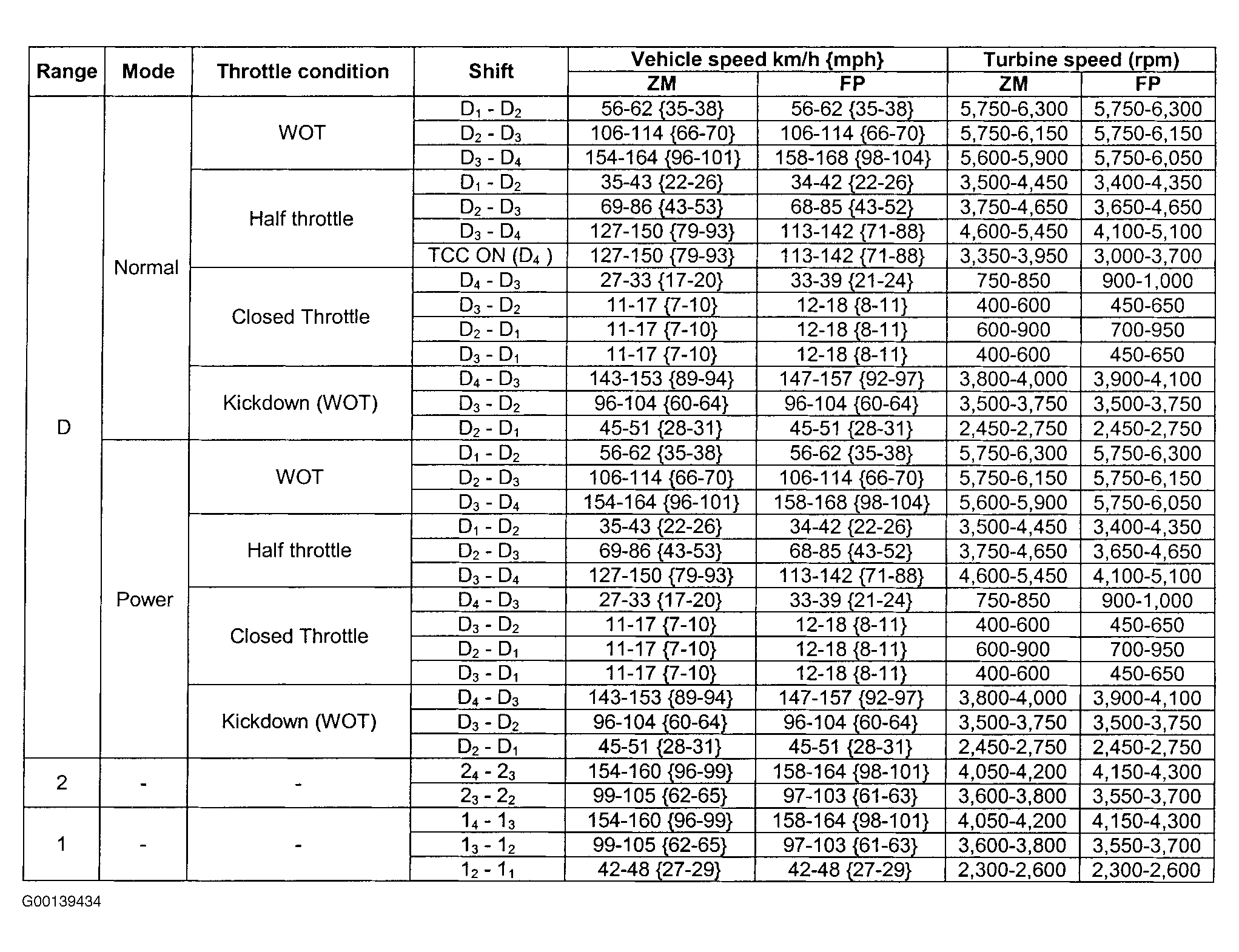

Fig 1: Automatic Shift Speed Table
G00139434Courtesy of MAZDA MOTORS CORP.

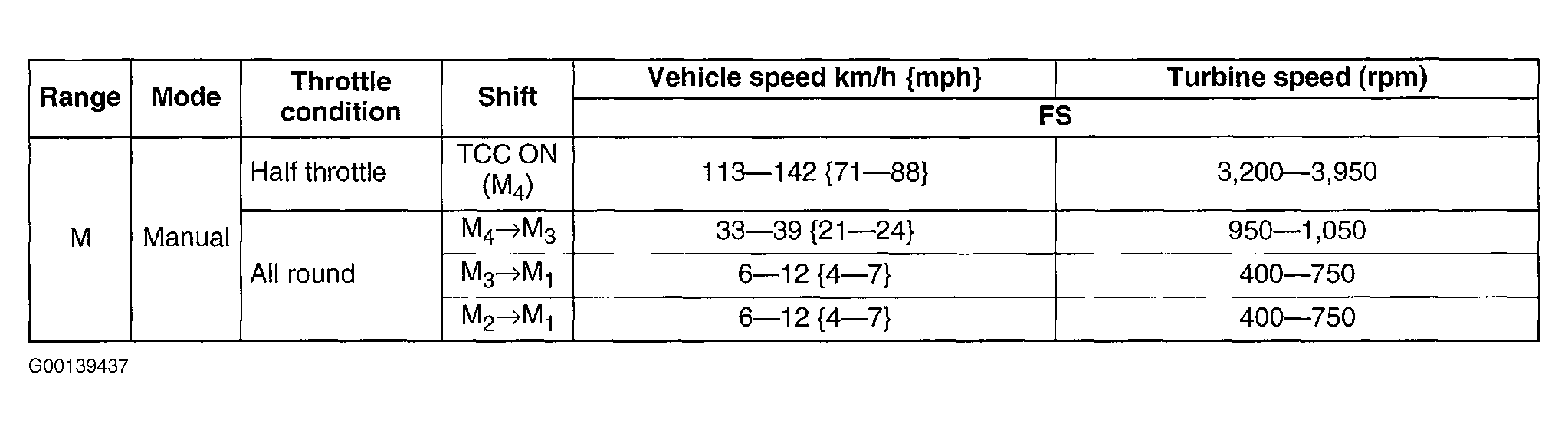

Fig 2: Manual Shift Speed Table
G00139437Courtesy of MAZDA MOTORS CORP.

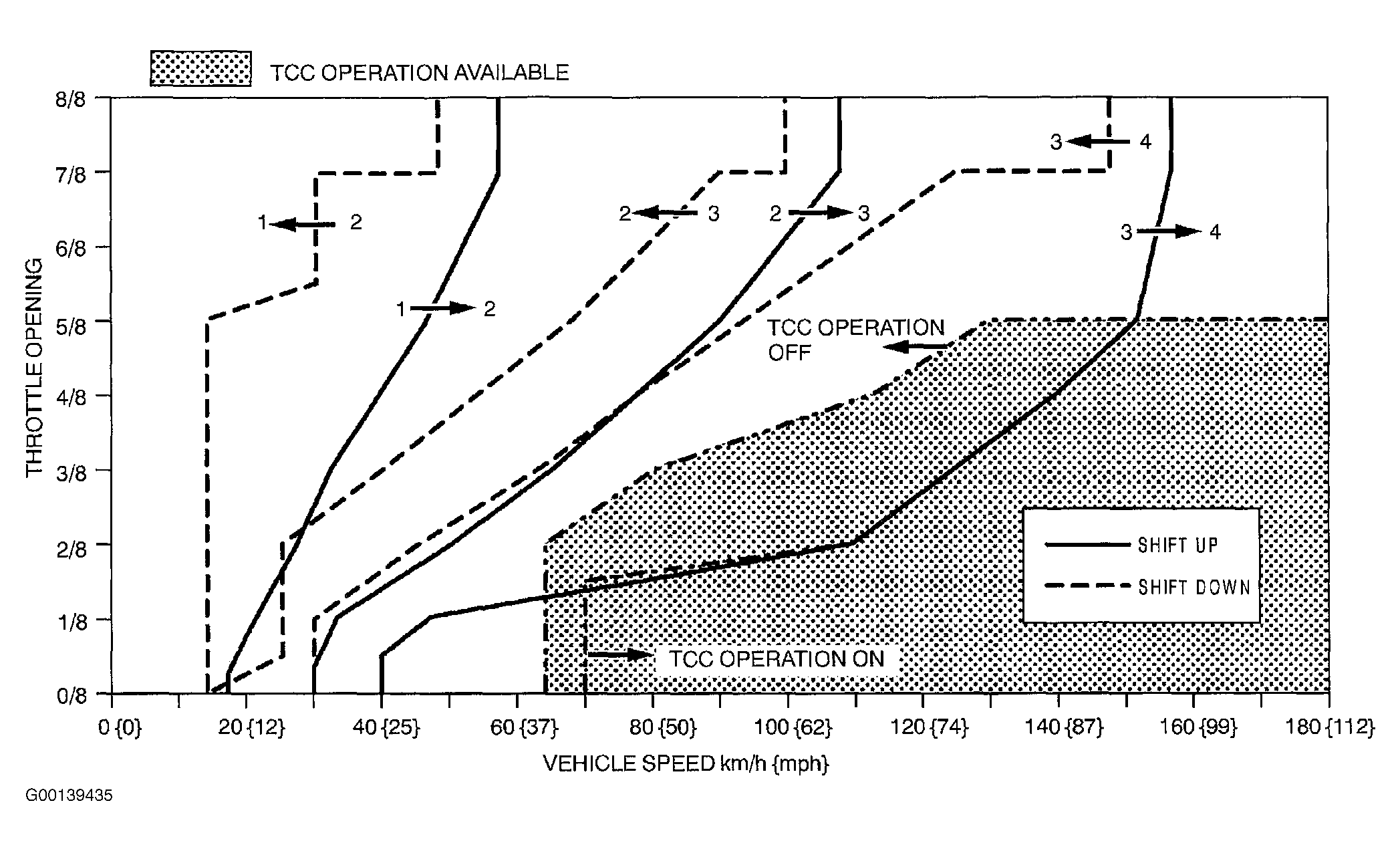

Fig 3: Shift Schedule Chart (1.6L)
G00139435Courtesy of MAZDA MOTORS CORP.

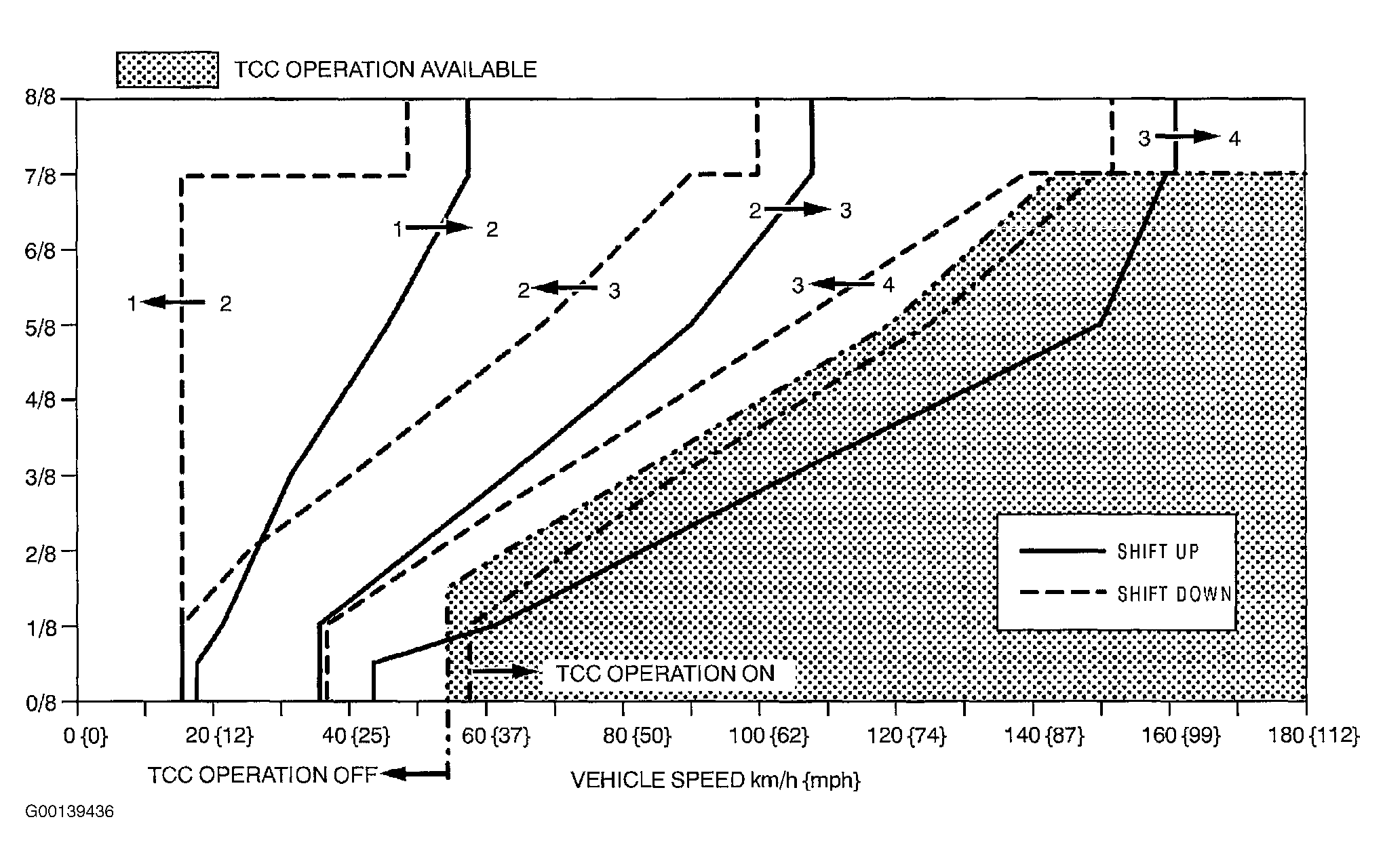

Fig 4: Shift Schedule Chart (2.0L)
G00139436Courtesy of MAZDA MOTORS CORP.
