Line Pressure Specifications

NOTE: Line pressure specifications are approximate.

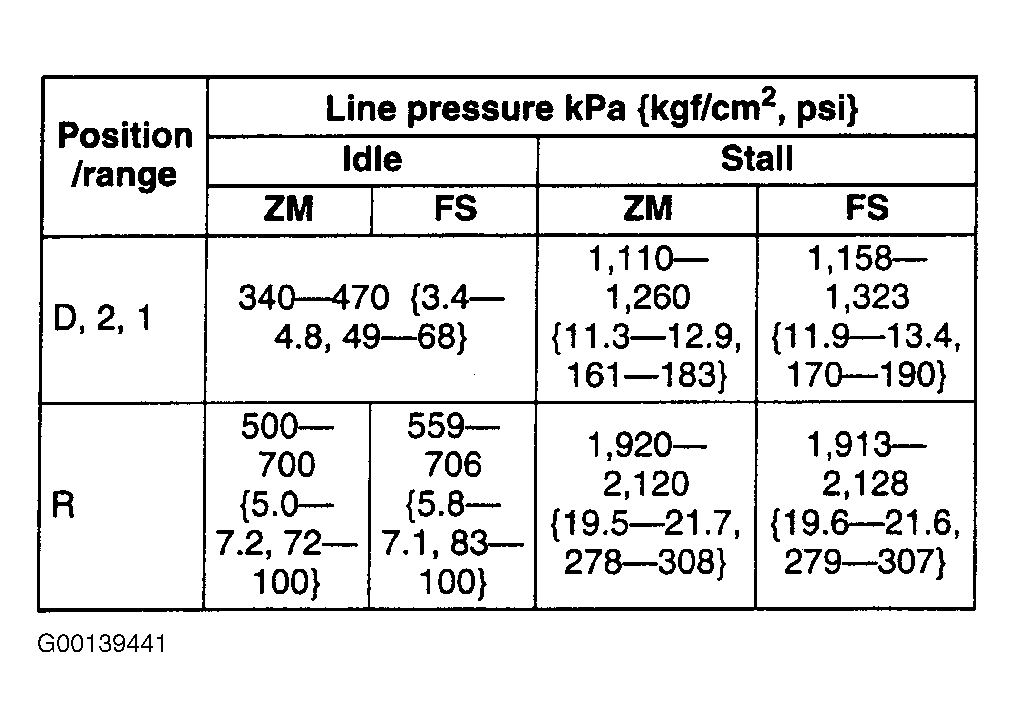

Fig 1: FN4A-EL Line Pressure Specifications (2001 Models)
G00139441Courtesy of MAZDA MOTORS CORP.

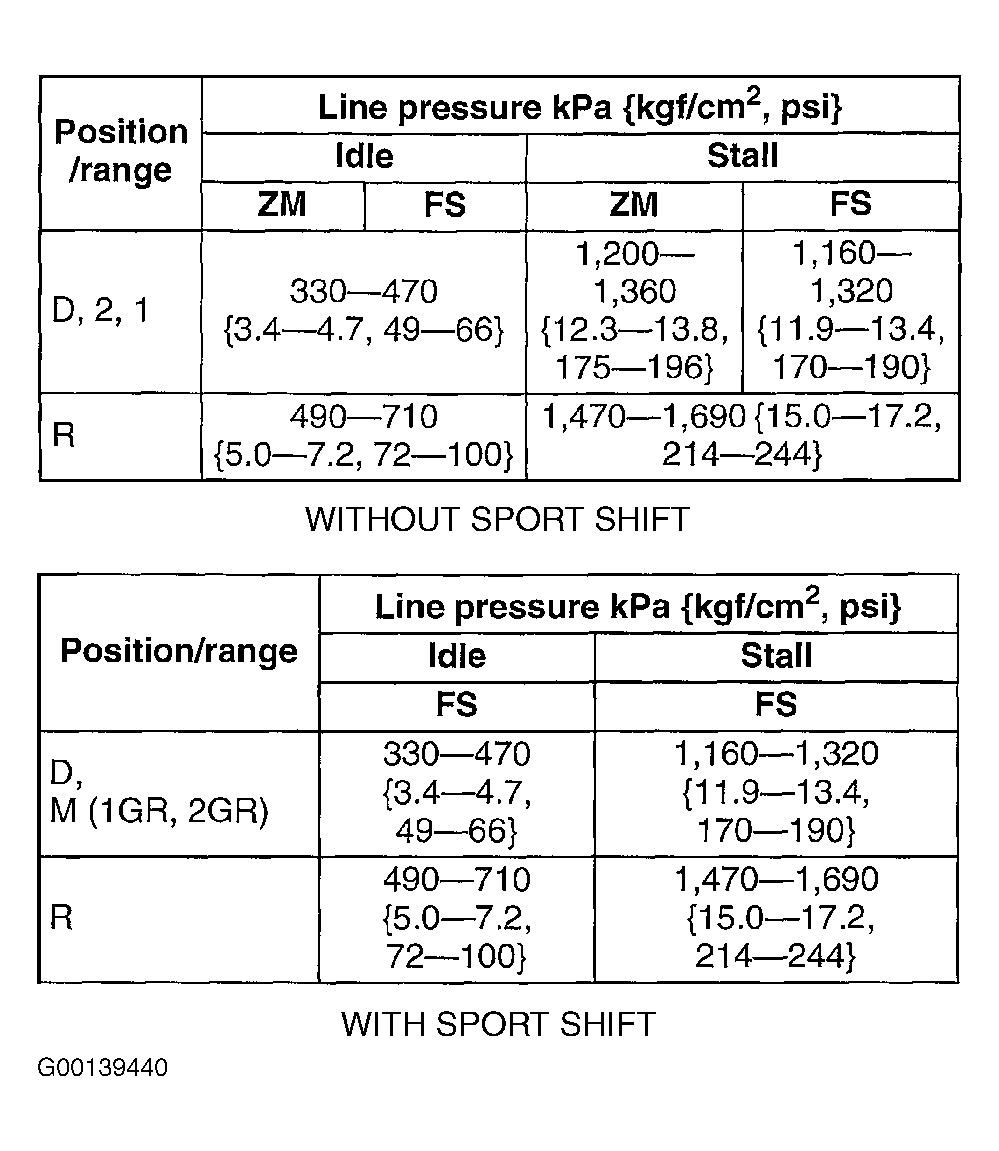

Fig 2: FN4A-EL Line Pressure Specifications (2002 Models)
G00139440Courtesy of MAZDA MOTORS CORP.
