Accessing OBD-II PIDS

Turn ignition switch to OFF position. Ensure scan tool is properly connected. Measure PID values.

Fig 1: Transaxle PCM PID Chart (2001 Protege)

Courtesy of MAZDA MOTORS CORP.

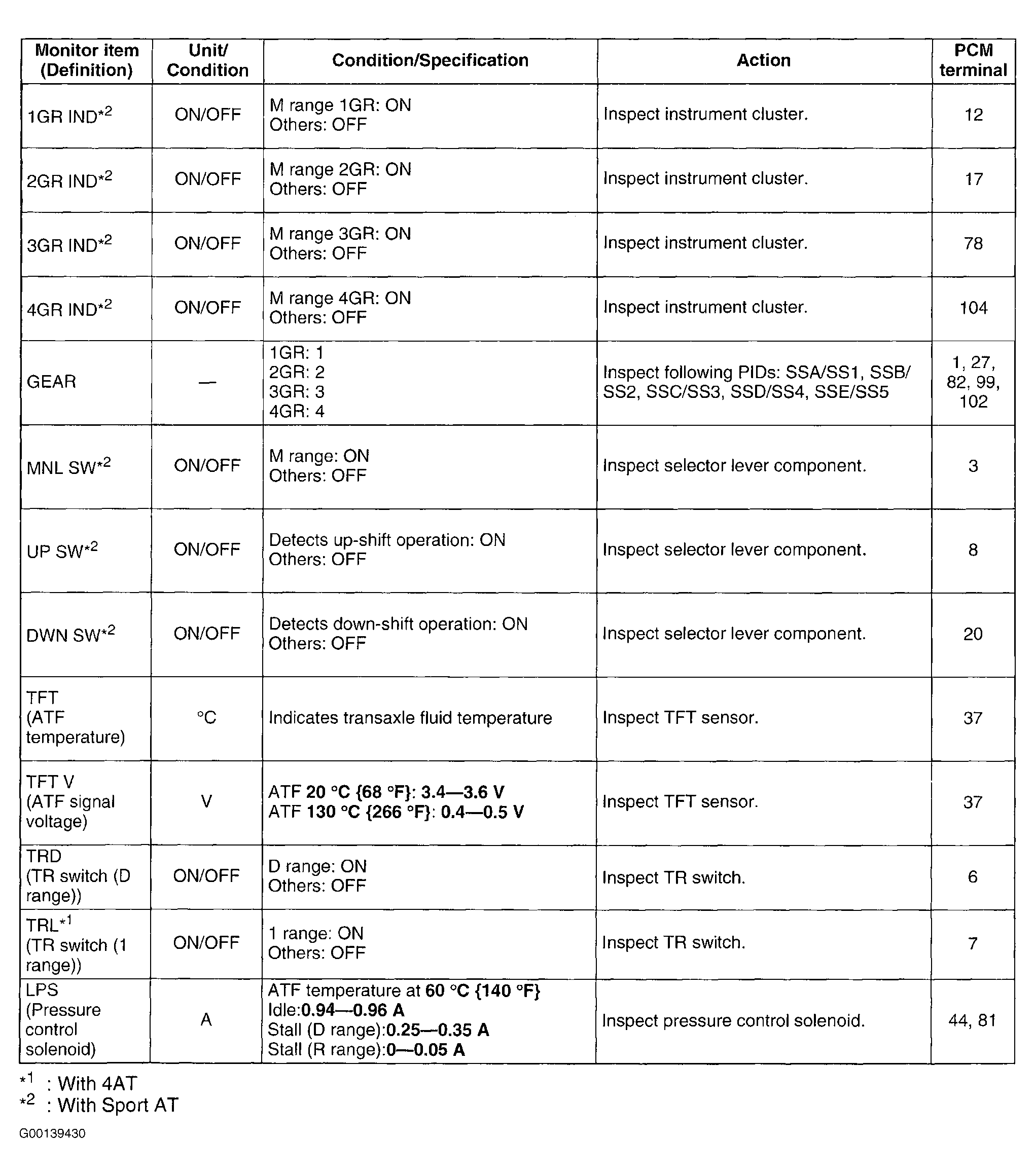

Fig 2: Transaxle PCM PID Chart (2002 Protege/Protege 5 - 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Transaxle PCM PID Chart (2002 Protege/Protege 5 - 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
