Input/Turbine Speed Sensor

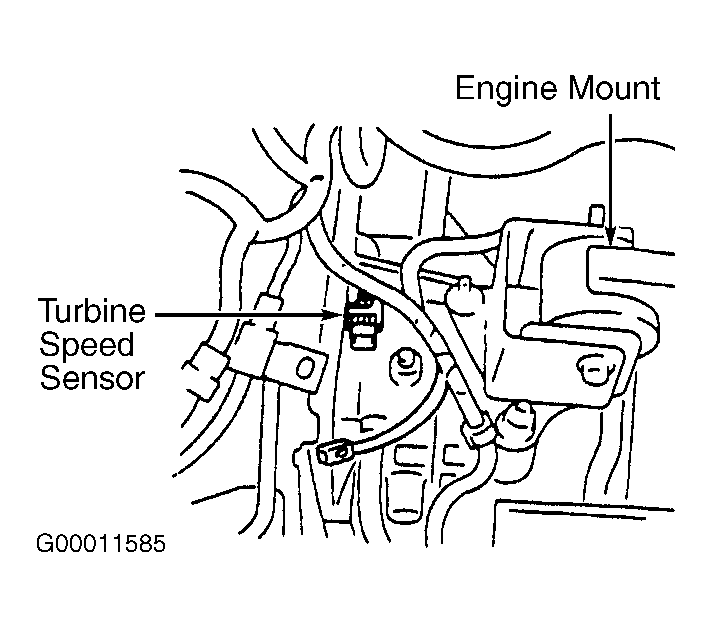

Disconnect negative battery cable. Remove fresh air duct and air cleaner assembly. Disconnect input/turbine speed sensor connector. See Figure. Measure resistance between terminals. Resistance should be 250-600 ohms with transaxle fluid temperature of -40-320°F (-40-160°C). Replace as needed.
