Protege ES, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission - Diagnosis
>>
Component Locations
Component Locations

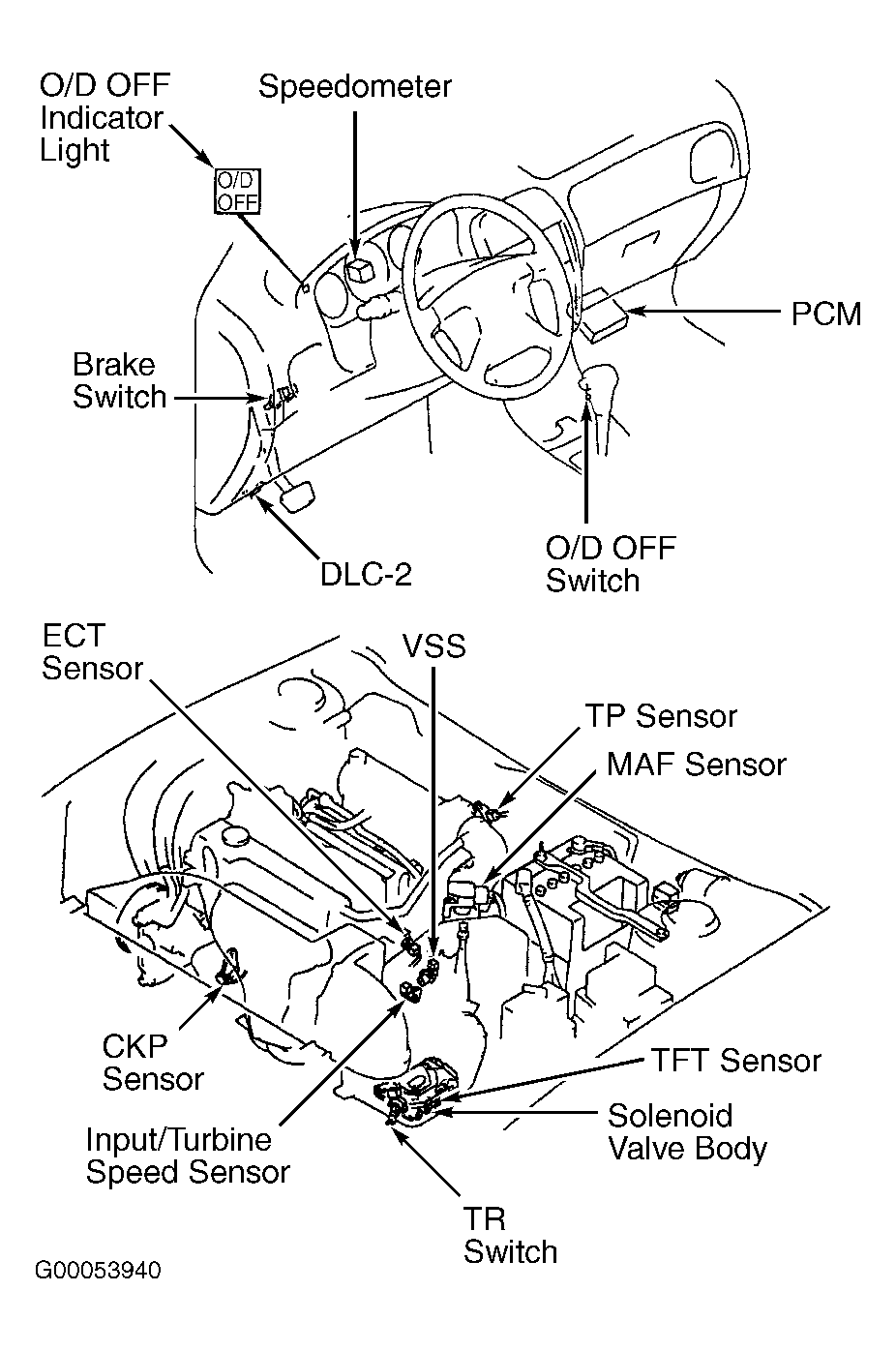

Fig 1: Locating Transaxle Electronic Components
Courtesy of MAZDA MOTORS CORP.

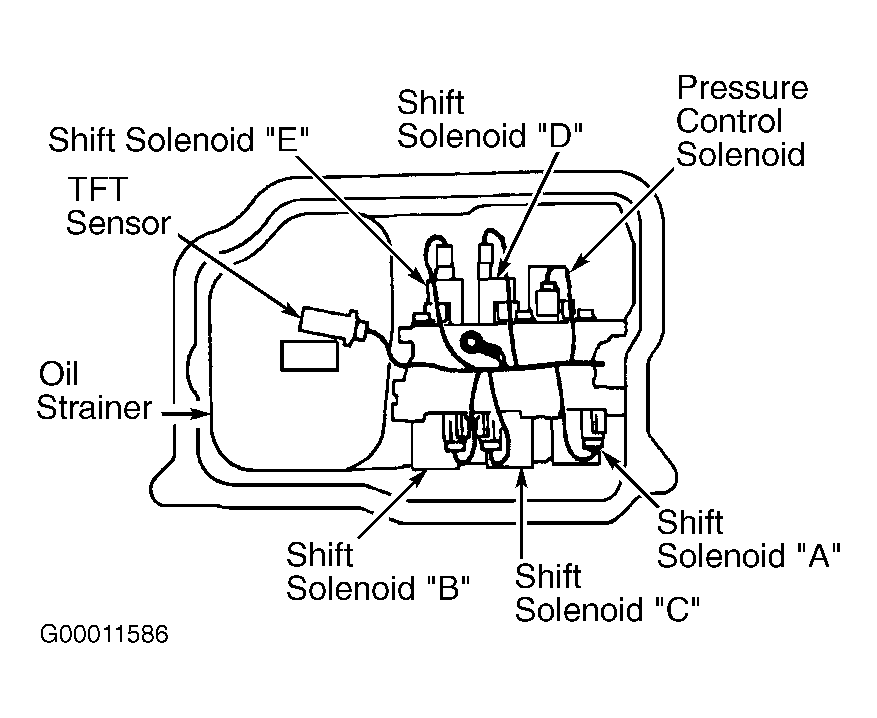

Fig 2: Locating Transaxle Solenoids
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
