Ignition Coil Removal/Installation

CAUTION: Disconnecting the ignition coil and plug cap can tear the plug cap off and cause damage to the connecting part. Disconnect the ignition coil and plug cap only when each component needs to be replaced, and be careful not to tear and damage them.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the illustration.

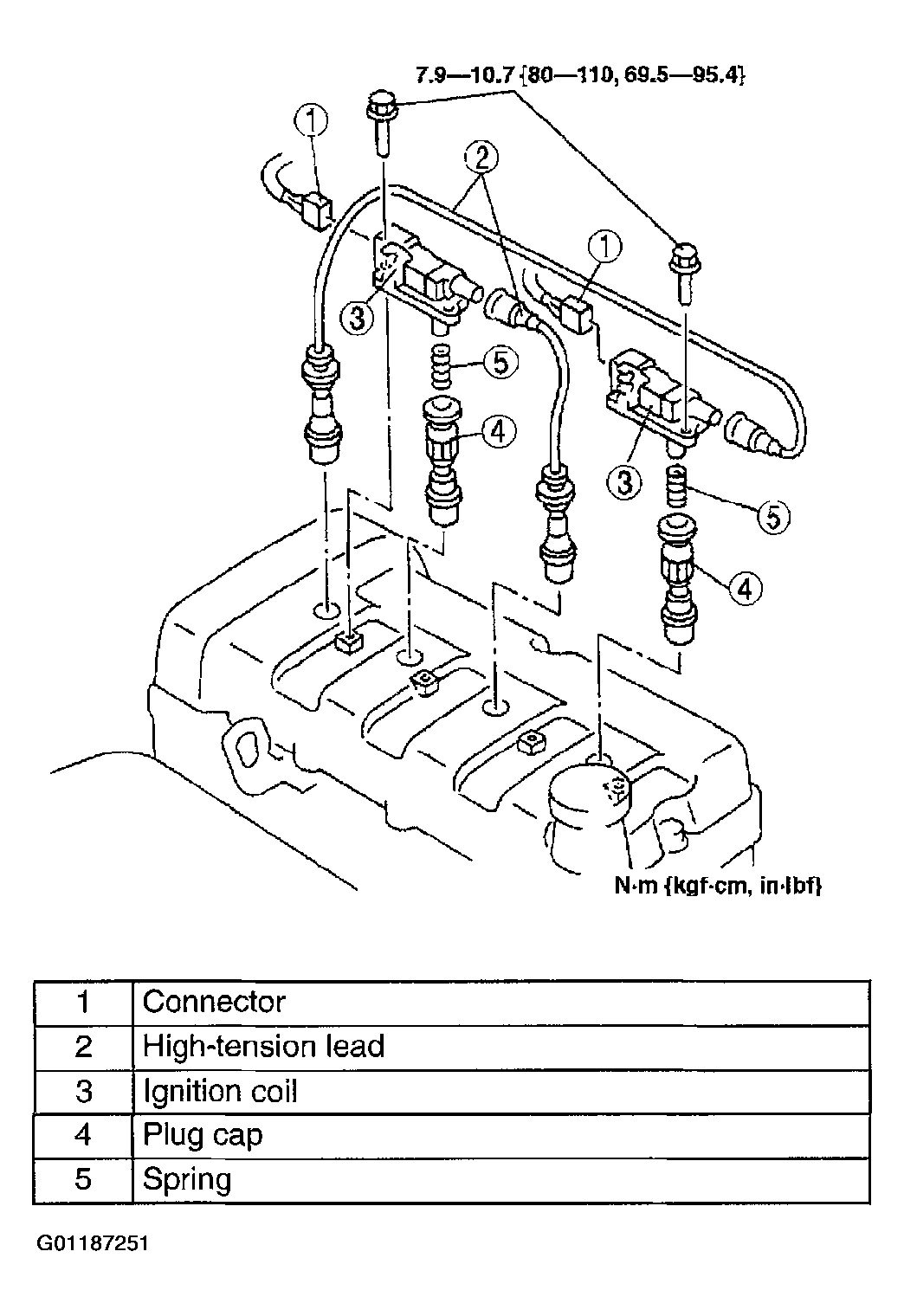

    Fig 1: Removing/Installing Ignition Coils
    G01187251Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
