Engine Tune-Up Preparation

  1. Warm up the engine to normal operating temperature.
  2. Shift the transaxle into neutral.
  3. Turn off all electrical loads.
    • Headlight switch
    • Fan switch
    • Rear window defroster switch
    • A/C switch
  4. Verify that the steering wheel is at straight ahead position.
  5. Connect the SSTs  (WDS or equivalent) to the DLC-2.
  6. Access RPM PID.
  7. Wait until the electrical fan stops.

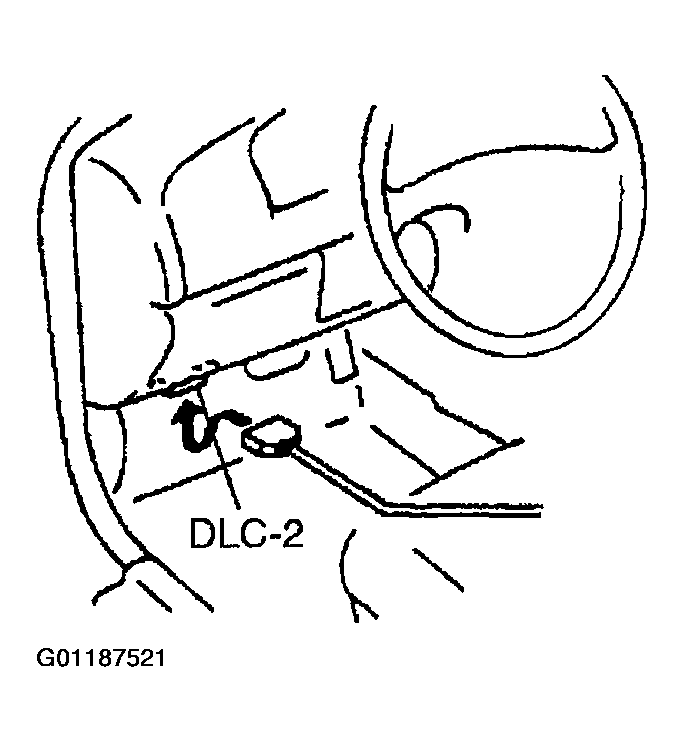

    Fig 1: Connecting Scan Tool
    G01187521Courtesy of MAZDA MOTORS CORP.
