Socket Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hook the harness as shown in the figure.

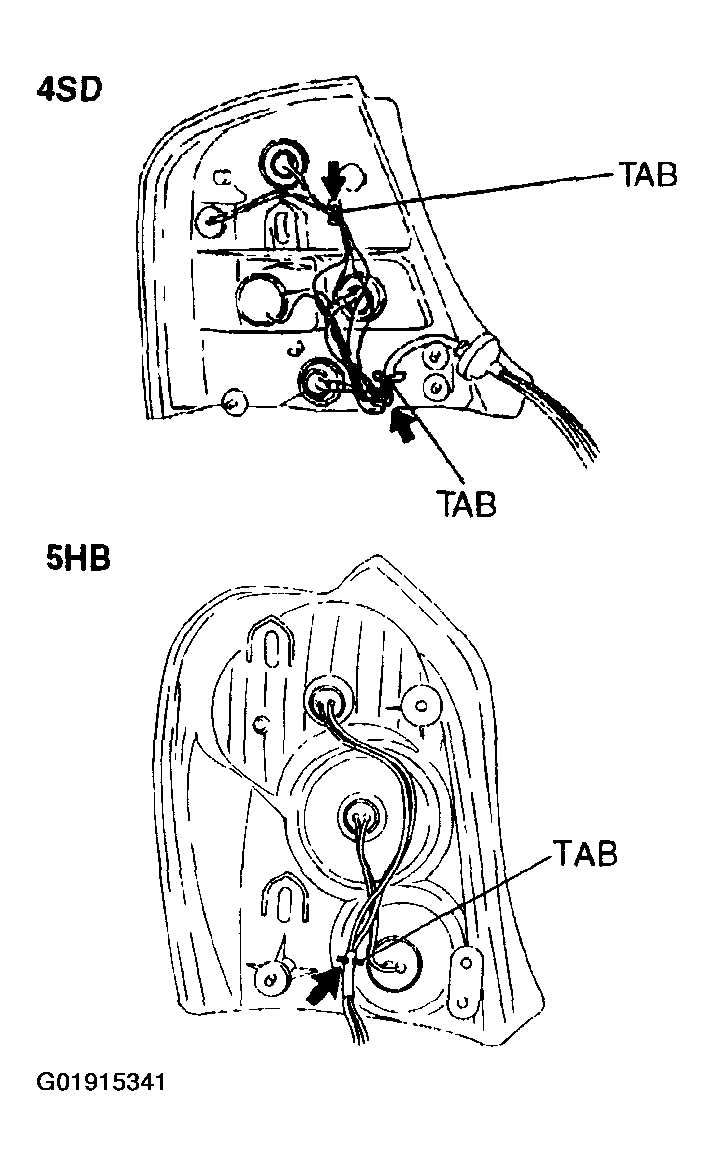

    Fig 1: Securing Harness
    G01915341Courtesy of MAZDA MOTORS CORP.
