Driver's Side

  1. Pull the upper side of the lower panel downward, then disengage clips A and pins B from the dashboard.

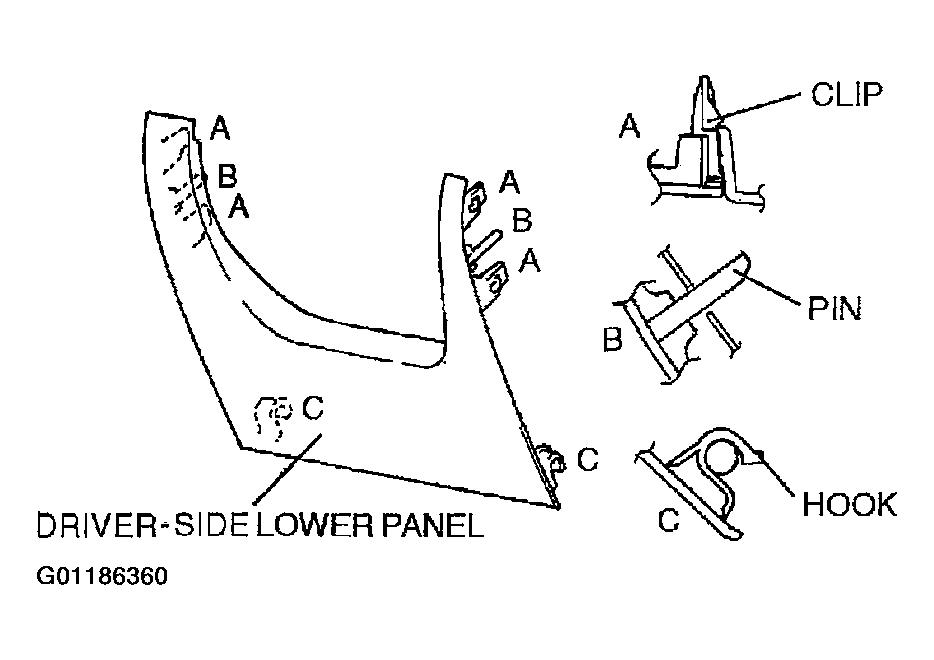

    Fig 1: Identifying Driver's Side Lower Panel Connectors
    G01186360Courtesy of MAZDA MOTORS CORP.
  2. Pull the lower panel toward you, then disengage hooks C from the dashboard.
  3. Install in the reverse order of removal.
