Water Pump Removal/Installation: L3

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3] .)
Remove in the order indicated in Fig 1.

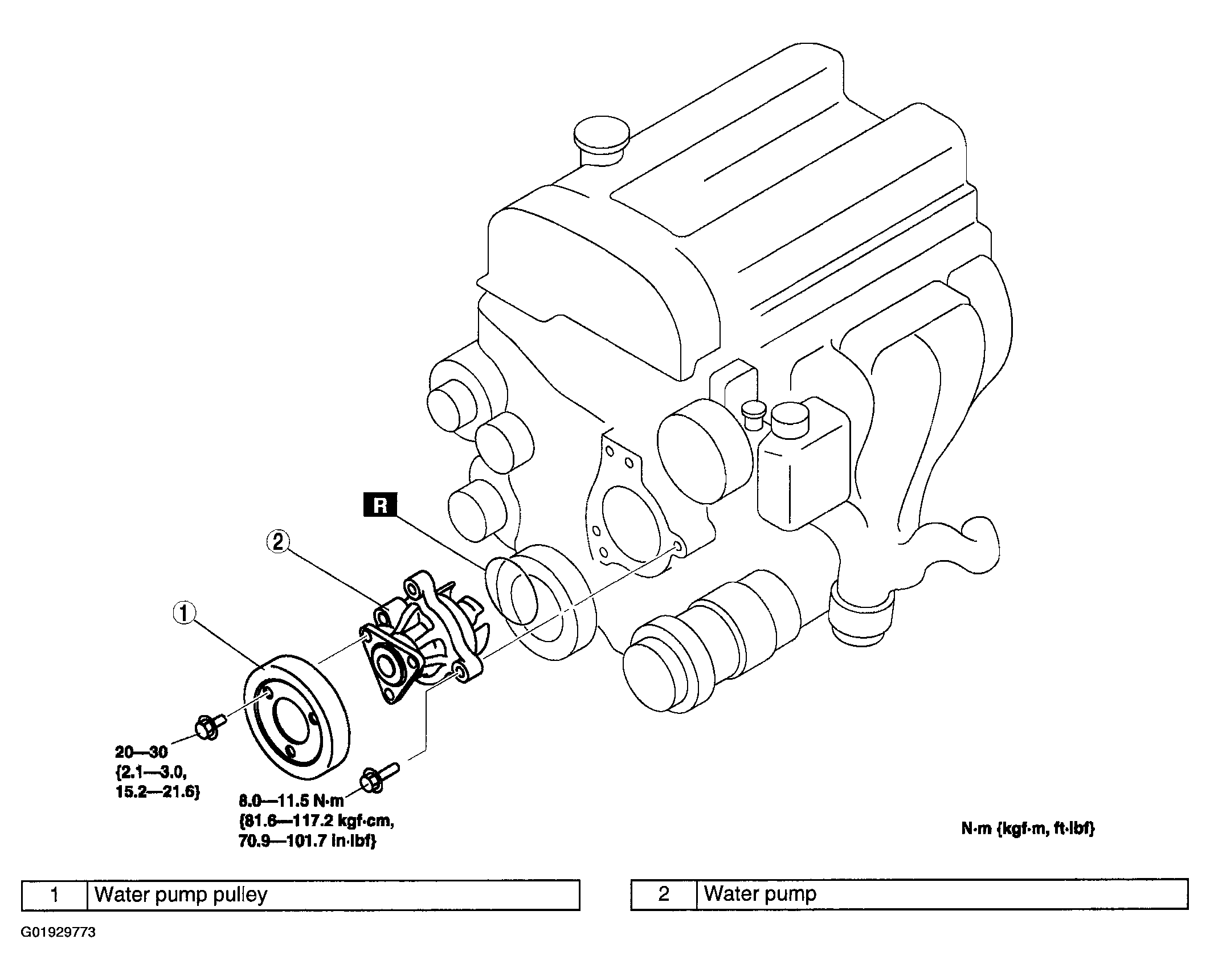

Fig 1: Removing Water Pump
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
