Front Stabilizer: Removal/Installation: Notes

1. Remove the splash shields.
2. Remove in the order indicated in the illustration. See Fig 1 .
3. Install in the reverse order of removal.
4. Adjust the front wheel alignment. See WHEEL ALIGNMENT SPECIFICATIONS .

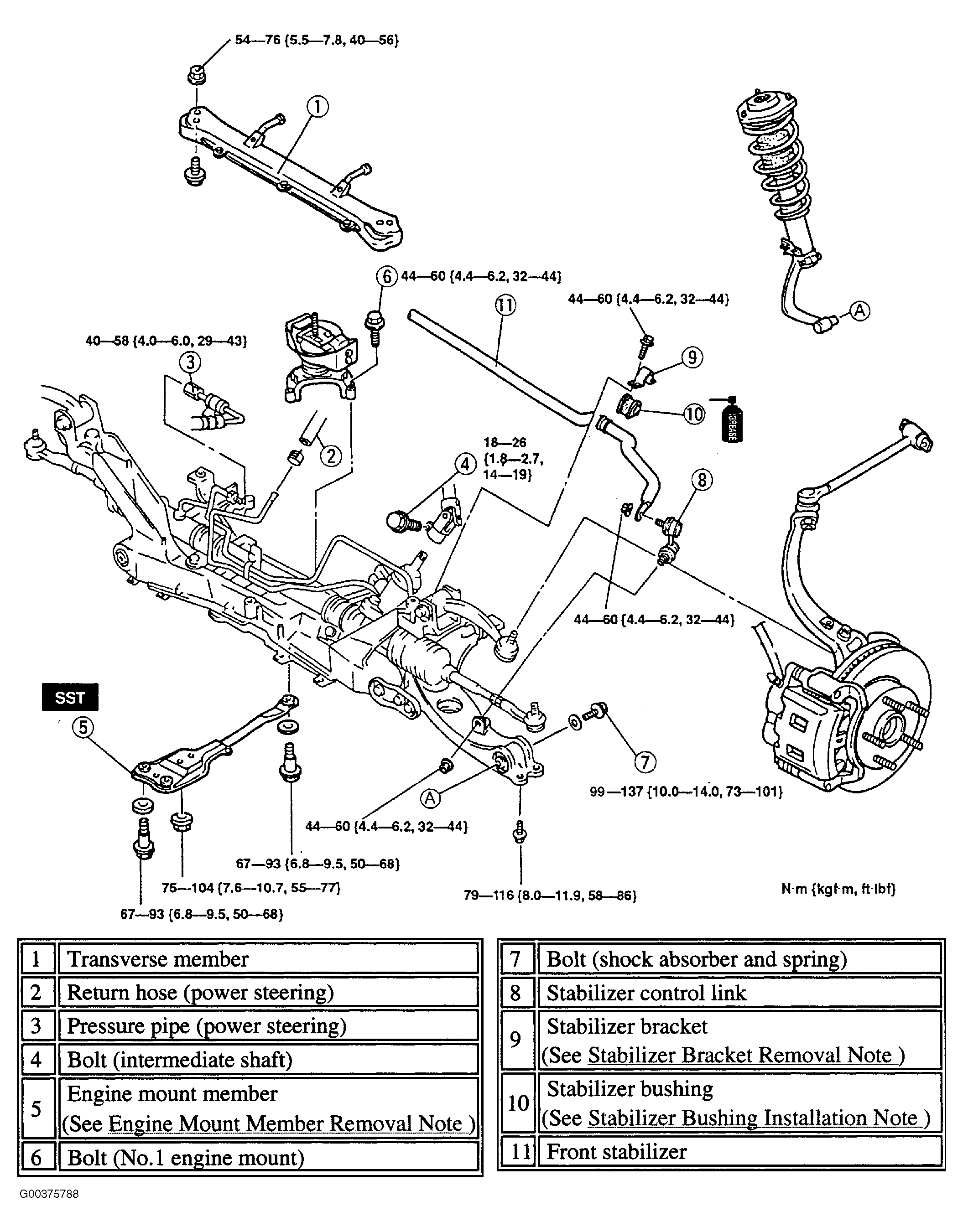

Fig 1: Removing Front Stabilizer

Courtesy of MAZDA MOTORS CORP.
