Engine Mount Member Removal Note

  1. Support the engine using the SST.

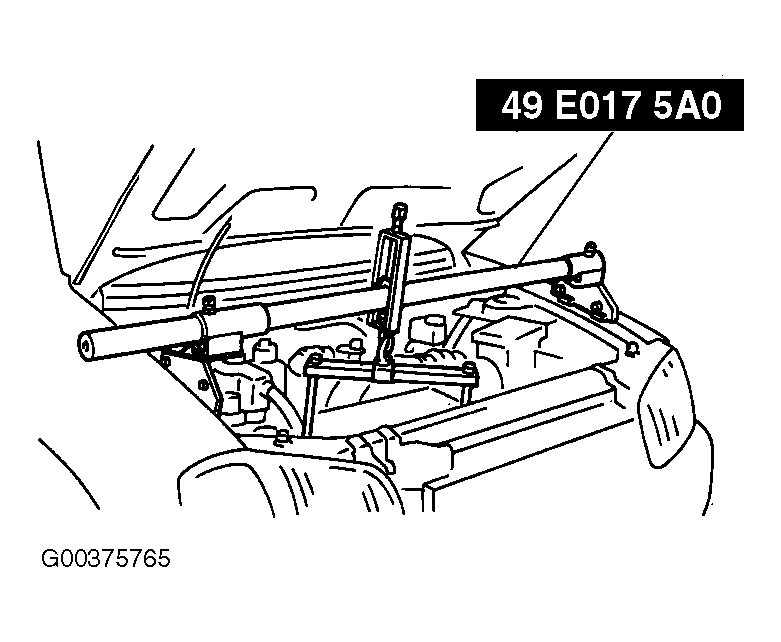

    Fig 1: Installing Engine Mount
    G00375765Courtesy of MAZDA MOTORS CORP.
  2. Remove the engine mount member nuts.
