Thermostat Removal/Installation: AJ: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove in the order indicated in Fig 1.

Fig 1: Thermostat Removal Sequence
Courtesy of MAZDA MOTORS CORP.

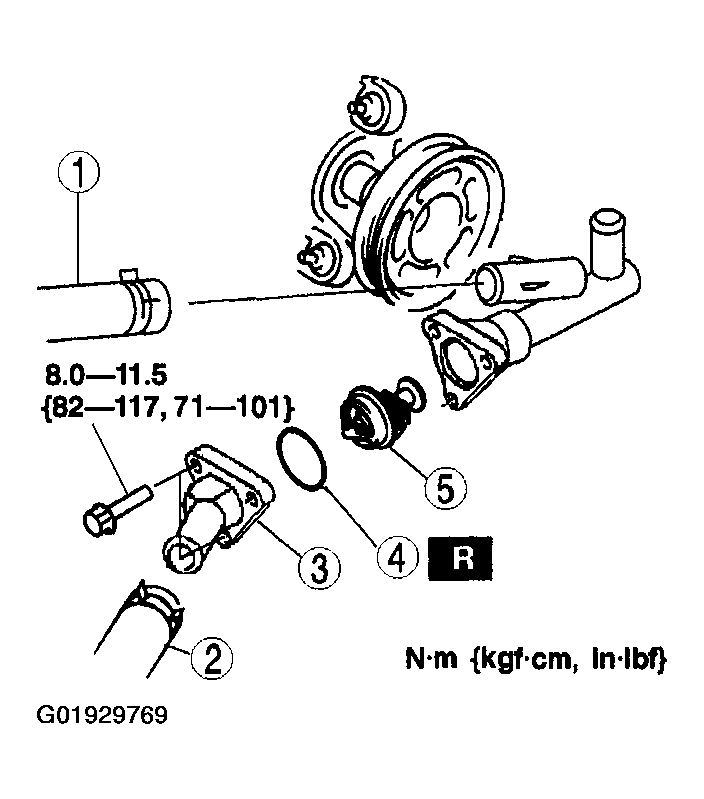

Fig 2: Exploded View Of Thermostat Components
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Inspect the engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
