Symptom Troubleshooting
>>
Notes
Symptom Troubleshooting: Notes
Verify the symptom, and perform troubleshooting according to the appropriate number.

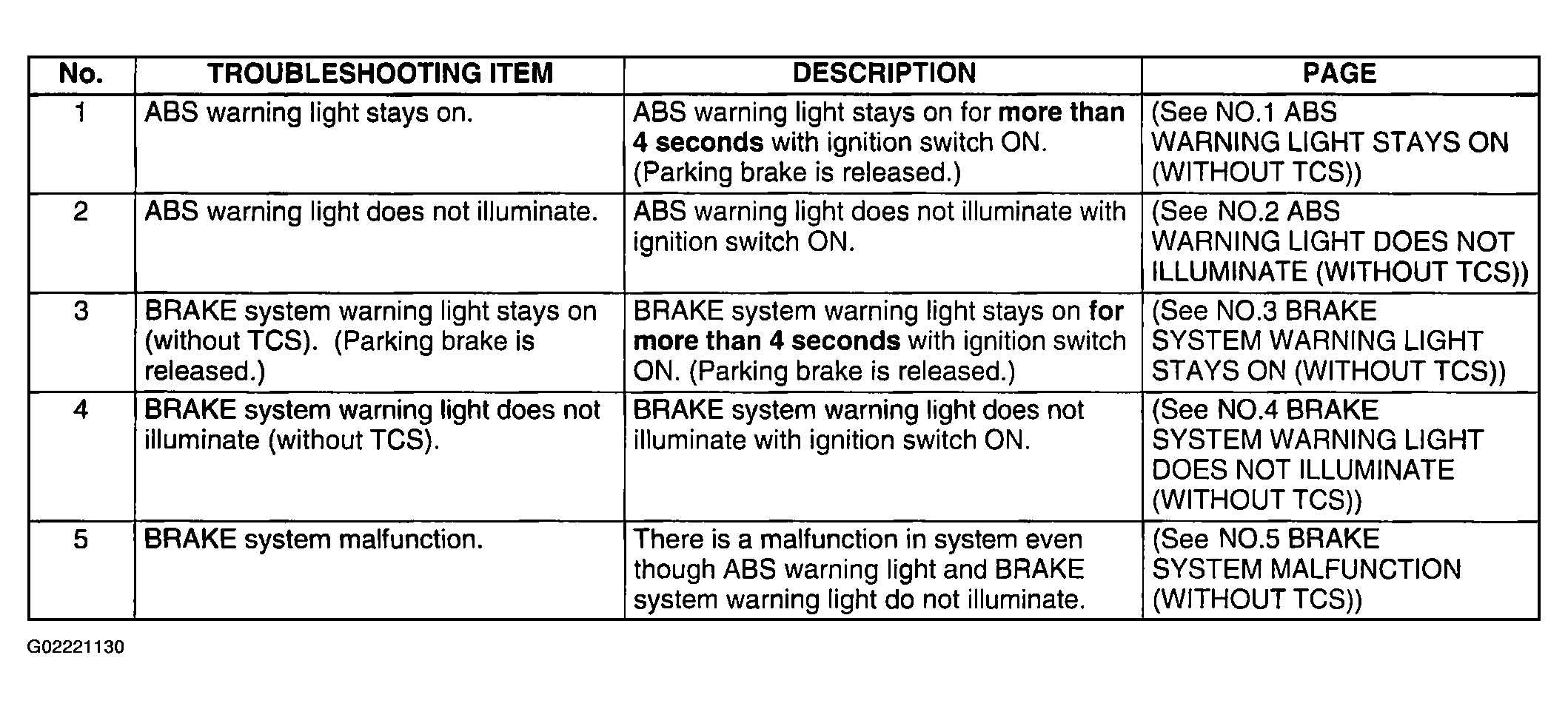

Fig 1: Symptom Troubleshooting Chart (Without TCS)
Courtesy of MAZDA MOTORS CORP.

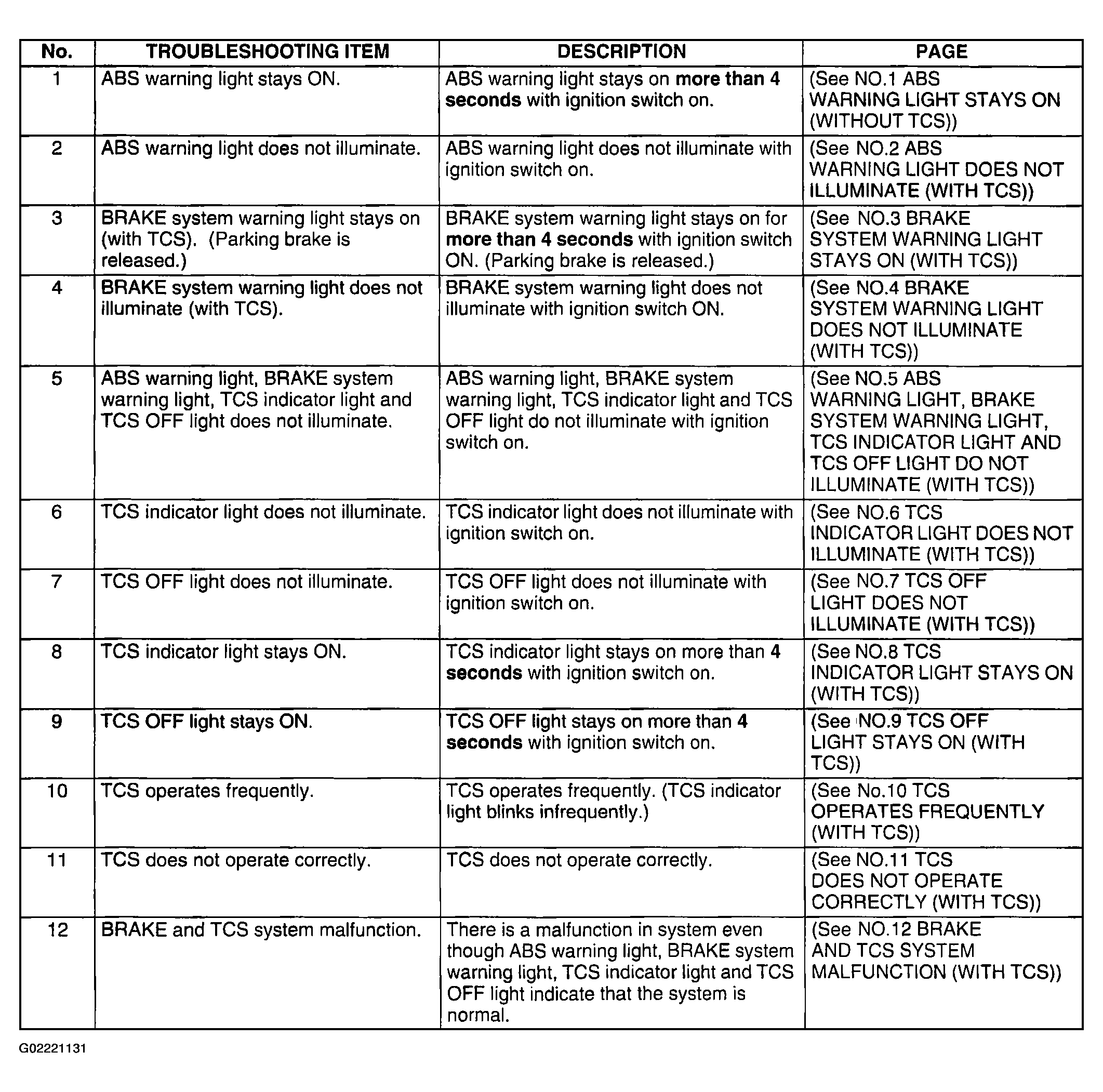

Fig 2: Symptom Troubleshooting Chart (With TCS)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
