Rear Power Window Regulator Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the rear door glass. See REAR DOOR GLASS AND GUIDE REMOVAL/INSTALLATION  .
  3. Remove in the order indicate in the table.

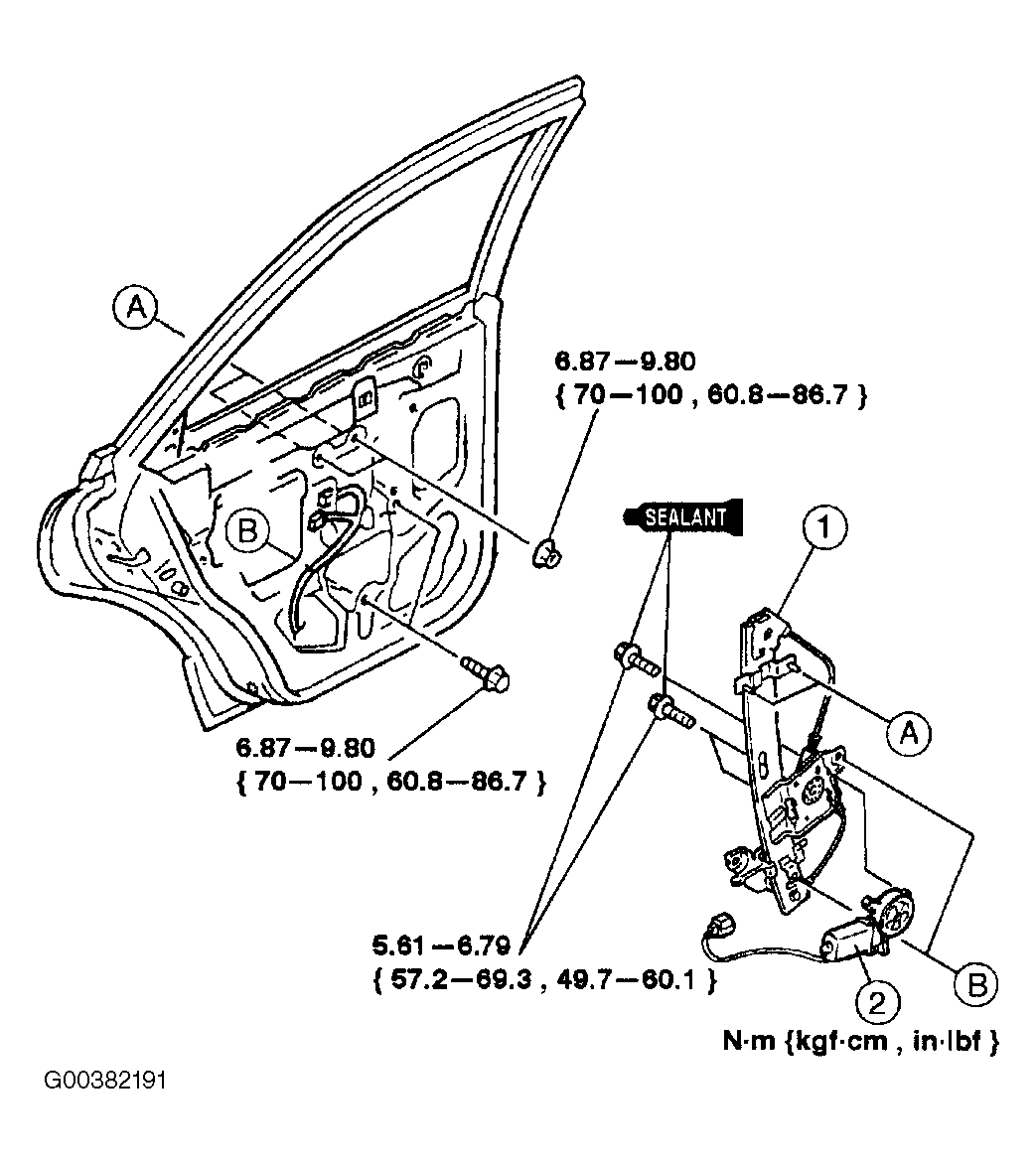

      Fig 1: Removing Rear Power Regulator
      G00382191Courtesy of MAZDA MOTORS CORP.
    1. Rear power window regulator.
    2. Rear power window motor.
  4. Install in the reverse order of removal.
