Power Window Main Switch Inspection

Inspect for continuity between the terminals of the power window main switch connector with the main switch in the following positions.
When inspecting the driver's side, connect the B+ to terminal H and connect the GND to the terminal F.
- If not as specified, replace the power window main switch.

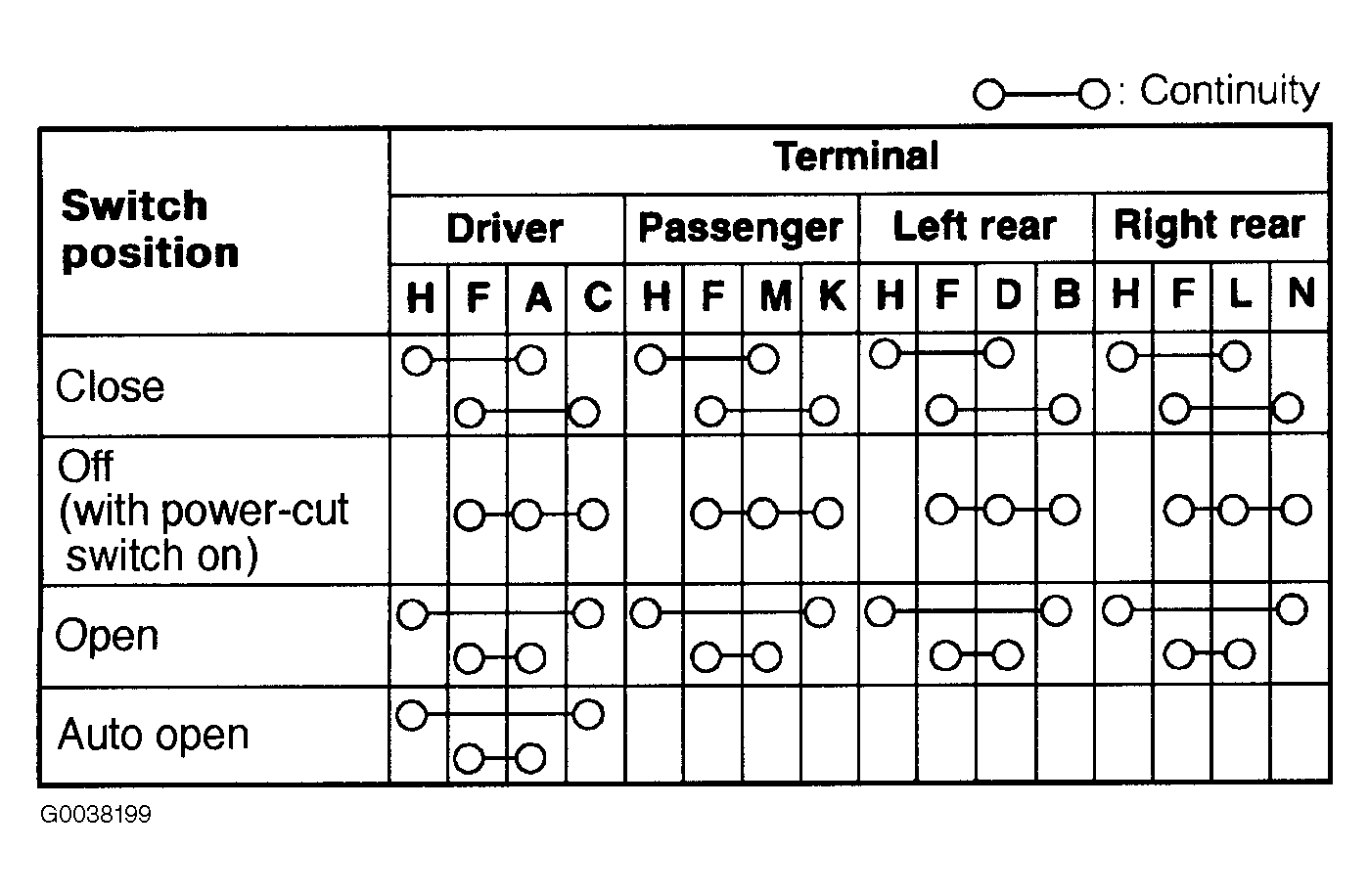

Fig 1: Inspecting Continuity In Power Window Main Switch
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Power Window Switch Connectors
Courtesy of MAZDA MOTORS CORP.
