Abs HU/Cm Removal/Installation: Notes

  1. Remove the battery and battery tray.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

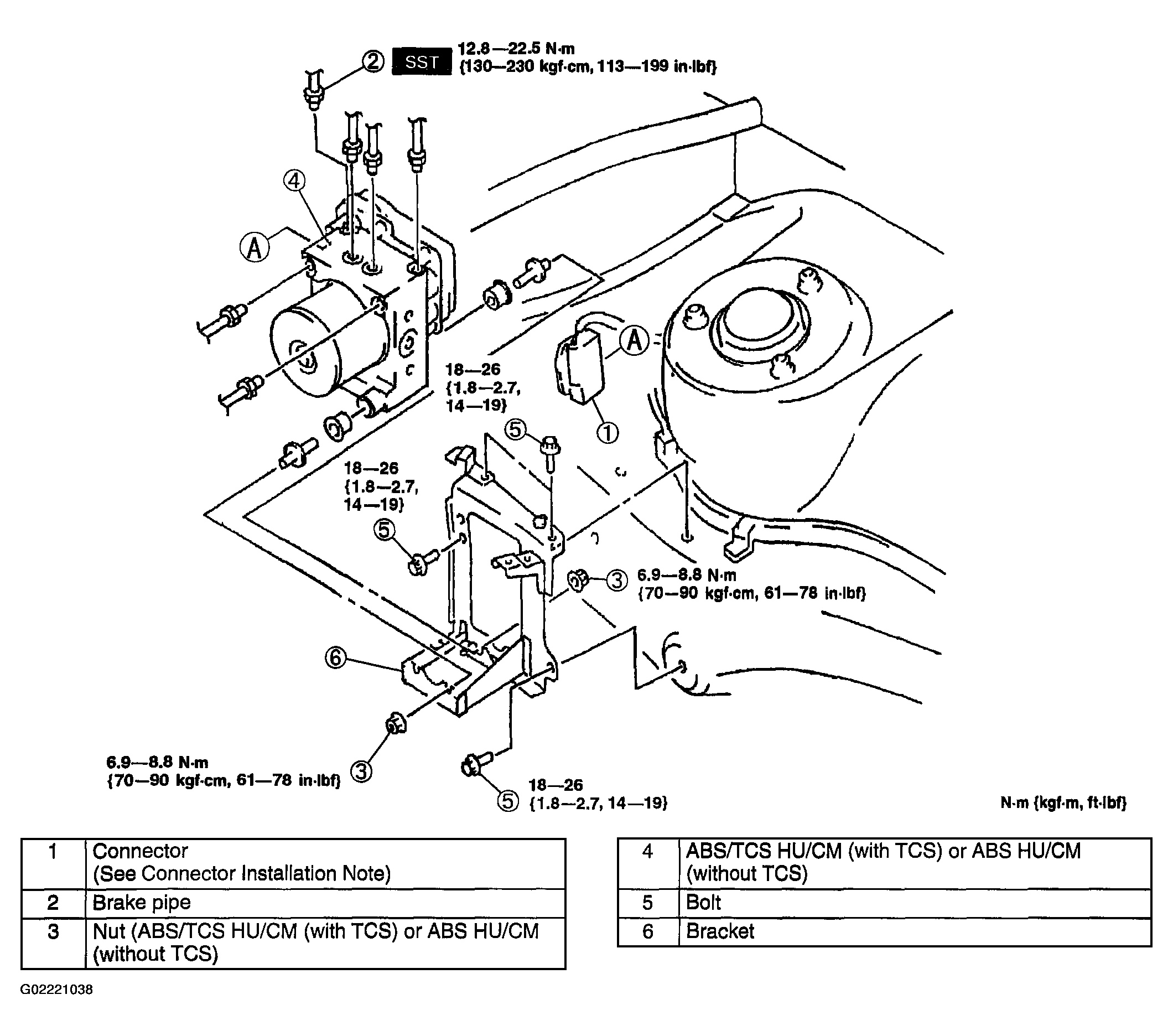

    Fig 1: Identifying ABS HU/CM Removal/Installation
    G02221038Courtesy of MAZDA MOTORS CORP.
