Bound Stopper Installation Note

  1. Install the bound stopper to the piston rod as shown.

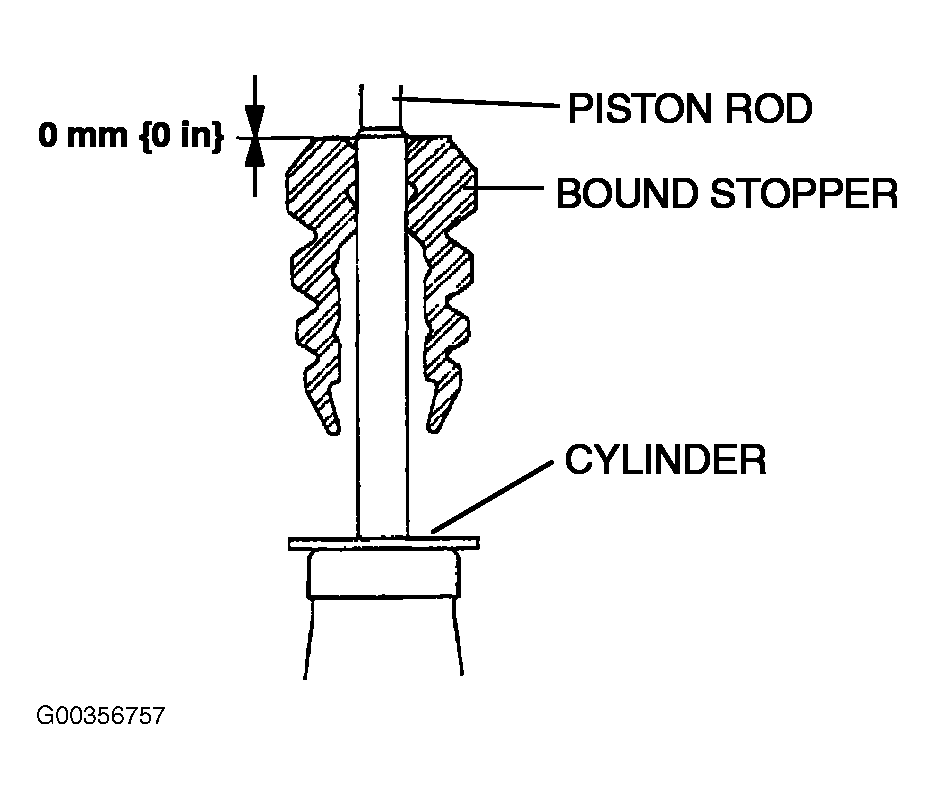

    Fig 1: Installing Bound Stopper
    G00356757Courtesy of MAZDA MOTORS CORP.
  2. Verify that the lower end of the bound stopper does not contact the cylinder.
