Home >> Mazda >> 2002 >> MX-5 Miata SE >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front CROSSMEMBER Removal/Installation >> Crossmember Component Removal/Installation

Crossmember Component Removal/Installation

  1. Remove the crossmember component.
  2. Install in the reverse order of removal.

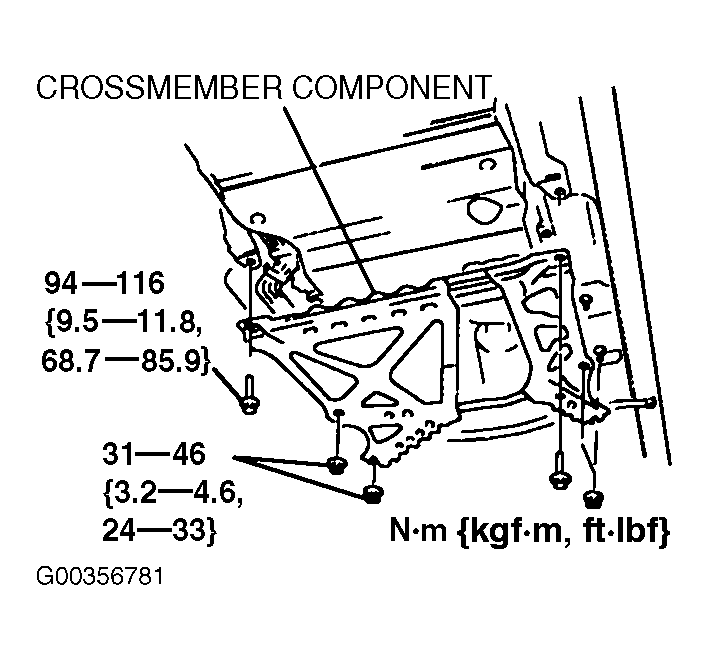

Fig 1: Removing Crossmember Component
G00356781Courtesy of MAZDA MOTORS CORP.
