Spark Plug Removal/Installation

CAUTION:
  • To avoid breaking the spark plug, be sure to fit the socket squarely over it.
  1. Disconnect the high-tension lead.
  2. Remove the spark plug.
  3. Install in the reverse order of removal.
    1. Tightening torque 15-22 N.m {1.5-2.3 kgf.m, 11-16 ft.lbf}

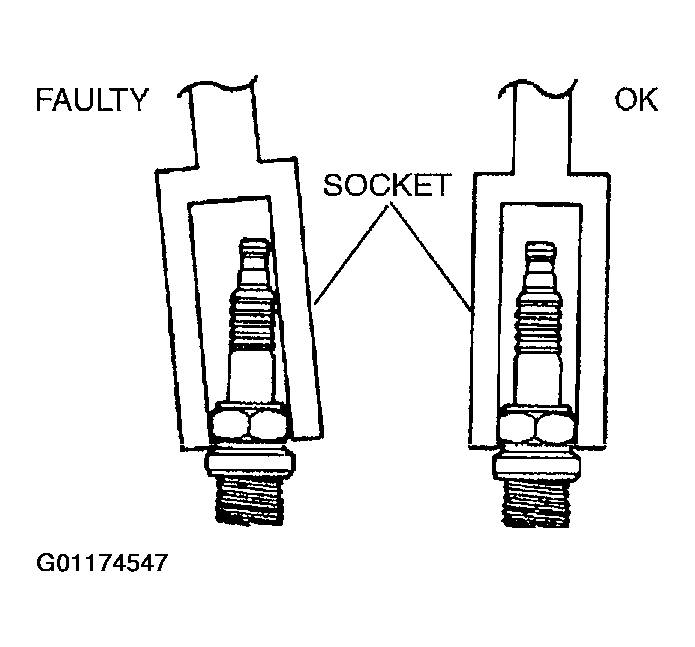

    Fig 1: Installing Spark Plug
    G01174547Courtesy of MAZDA MOTORS CORP.
