Front Oil Seal Replacement: Notes

  1. Remove the timing belt. See TIMING BELT REMOVAL/INSTALLATION .
  2. Remove in the order indicated in the table. See Fig 1.
  3. Install in the reverse order of removal.

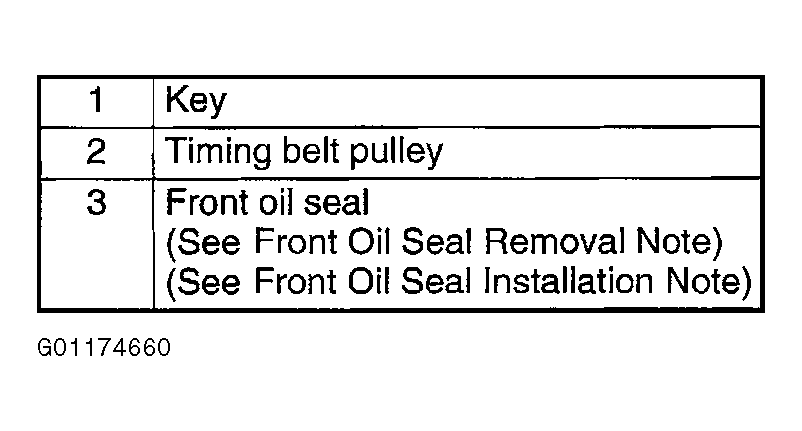

Fig 1: Front Oil Seal Replacement Sequence Table
G01174660Courtesy of MAZDA MOTORS CORP.

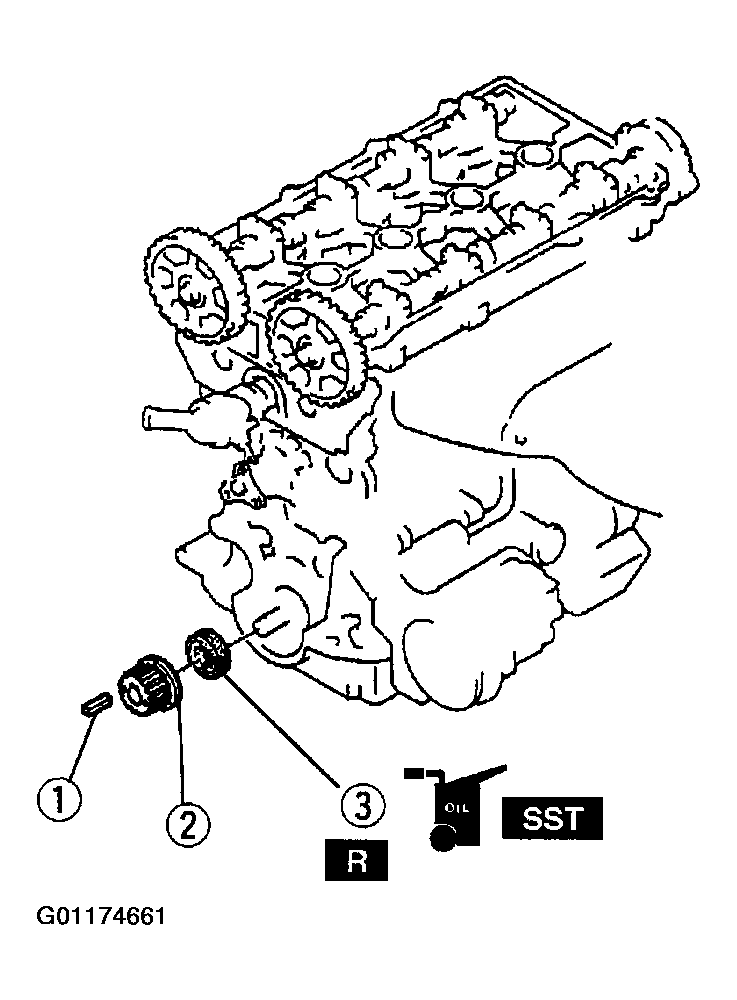

Fig 2: Locating Oil Seal Components
G01174661Courtesy of MAZDA MOTORS CORP.
