Windshield Wiper Motor Connector End View

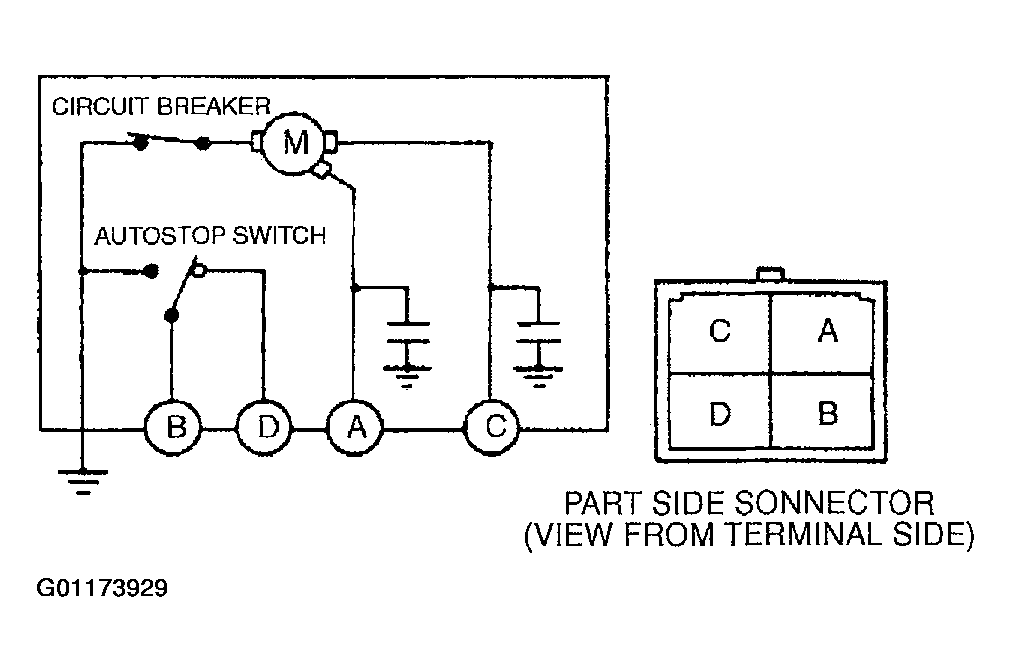

Fig 1: Windshield Wiper Motor Connector End View
G01173929Courtesy of MAZDA MOTORS CORP.

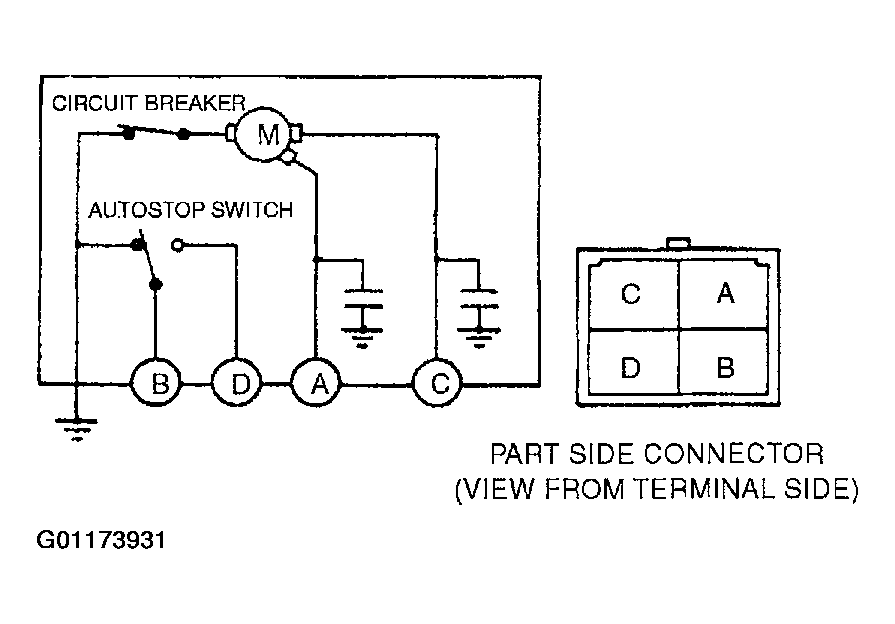

Fig 1: Windshield Wiper Motor Connector End View
G01173931Courtesy of MAZDA MOTORS CORP.
