Direct Clutch Piston Disassembly Note

  1. Install the direct clutch hub onto the center support.
  2. Remove the piston from direct clutch hub by applying compressed air through the fluid passage.

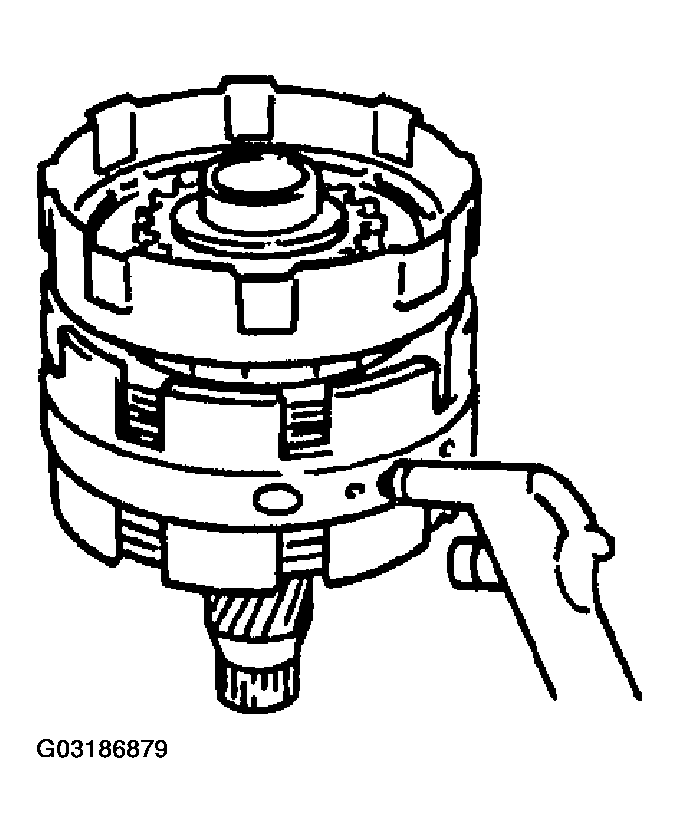

    Fig 1: Removing Direct Clutch Hub Piston
    G03186879Courtesy of MAZDA MOTORS CORP.
