Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Component Location |
|---|---|
| ABS Hydraulic Unit/Control Module | On right rear of engine compartment. |

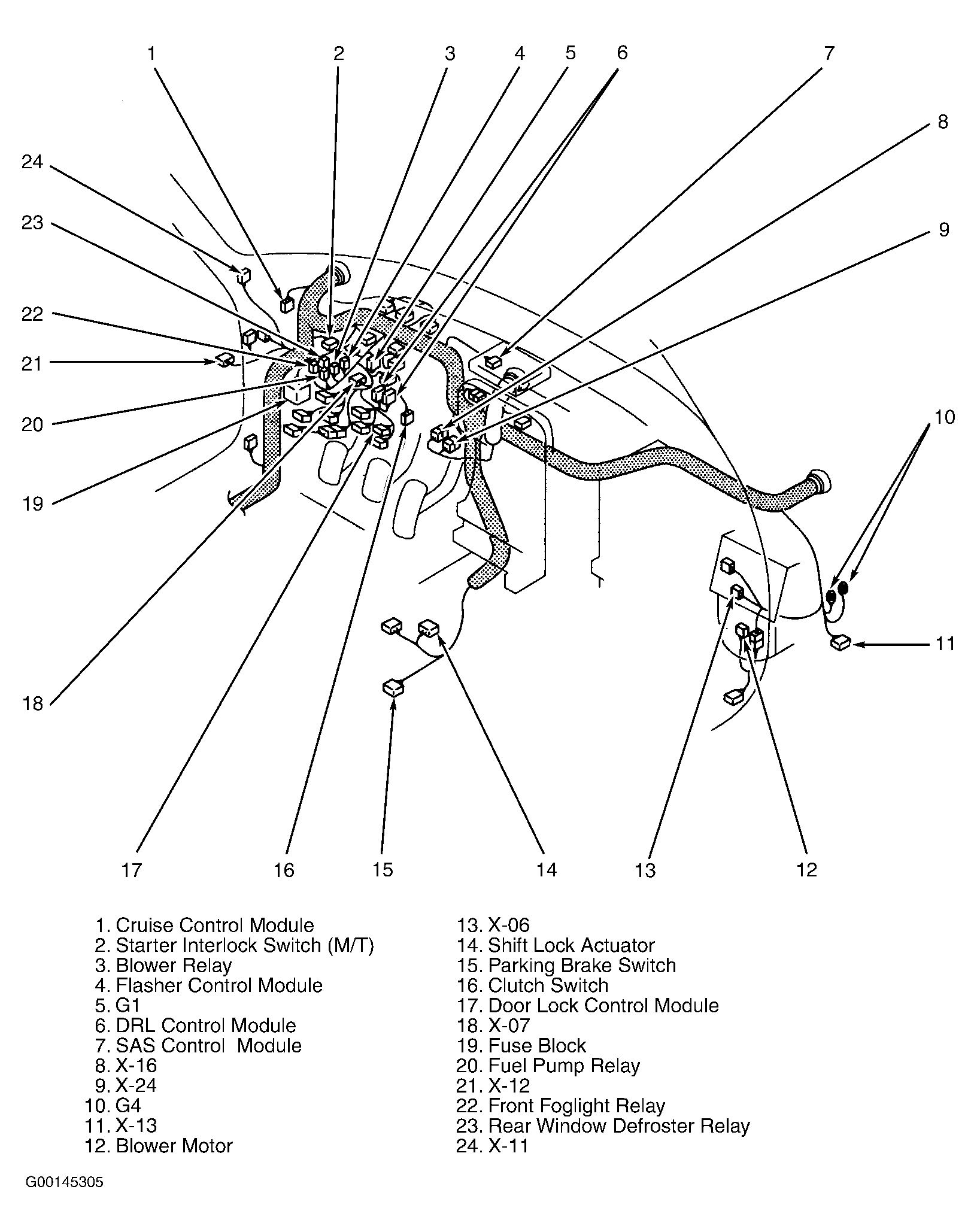

| Blower Motor | Integral to blower unit, behind right side of dash. See Figure . |
| Fuel Pump Unit | Under rear center of vehicle. |
| Trunk Lid Lock Actuator | Lower rear center of vehicle. |
| Windshield Washer Motor | On washer fluid reservoir. |
| Windshield Wiper Motor | On right side of firewall. |
