BP With TC

WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

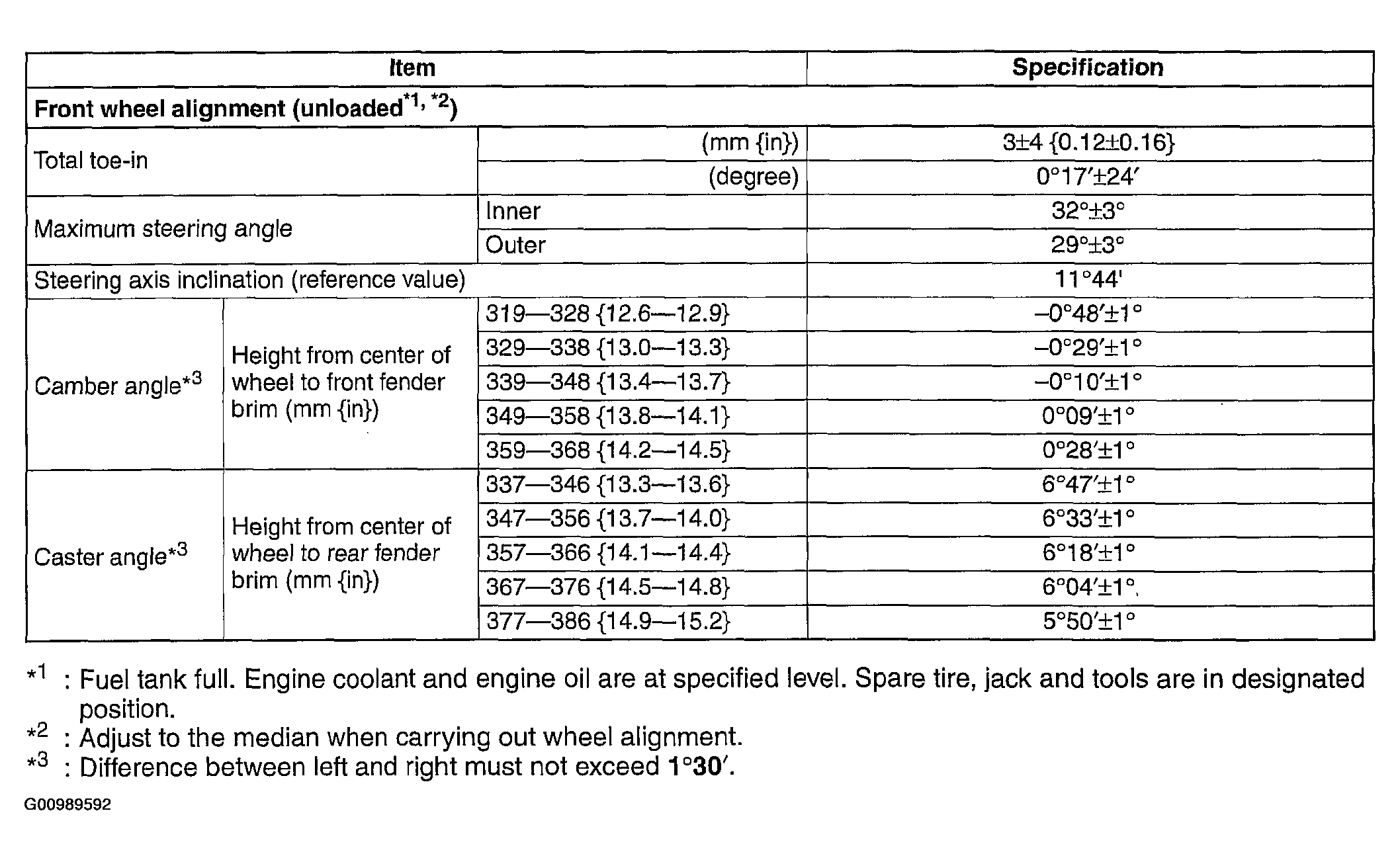

Fig 1: Front Wheel Alignment Specifications (BP With TC)
G00989592Courtesy of MAZDA MOTORS CORP.
