Caster Adjustment

WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Adjust the caster before adjusting the camber.

Loosen the front and/or rear cam nuts.

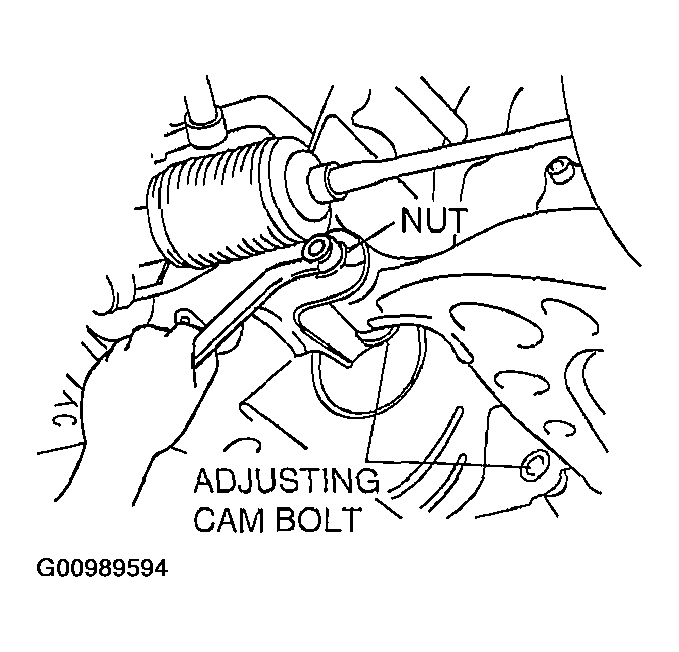

Fig 1: Loosening Front &/Or Rear Cam Nuts
Courtesy of MAZDA MOTORS CORP.
Turn the front and/or rear adjusting cam bolts equally to provide the correct caster angle.

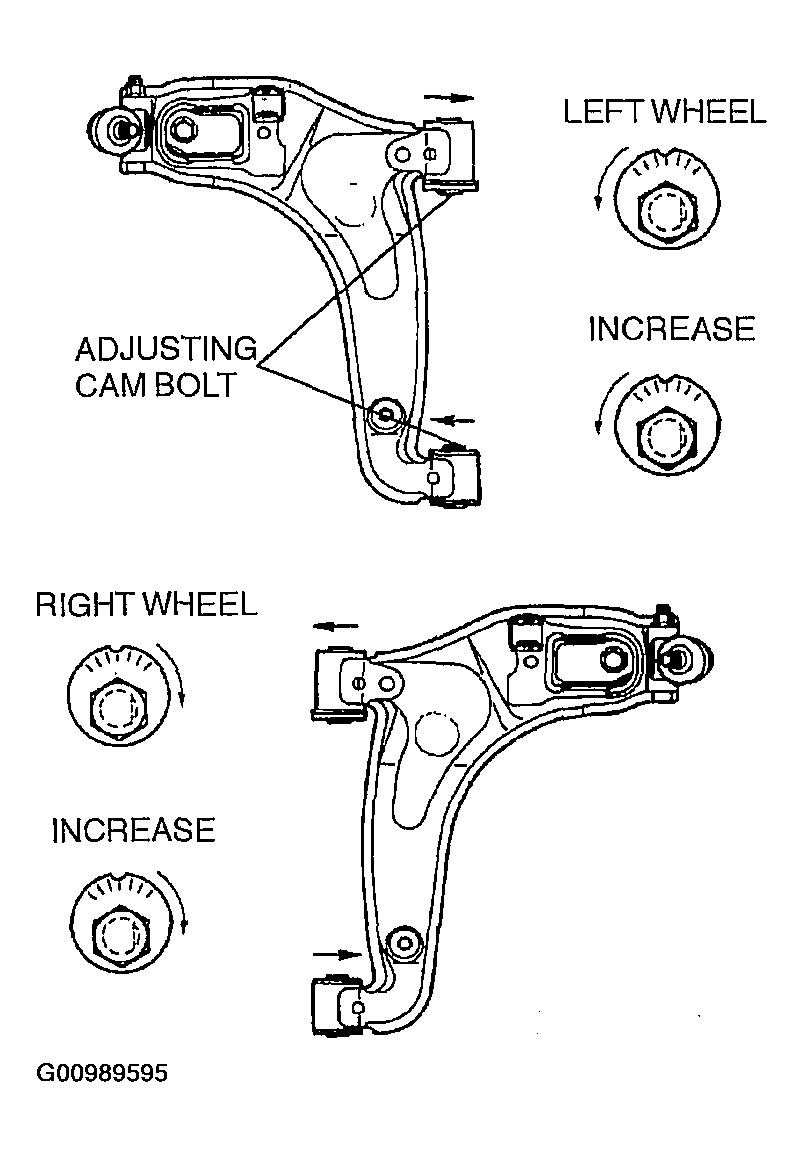

Fig 2: Adjusting Caster Angle (Front)
Courtesy of MAZDA MOTORS CORP.

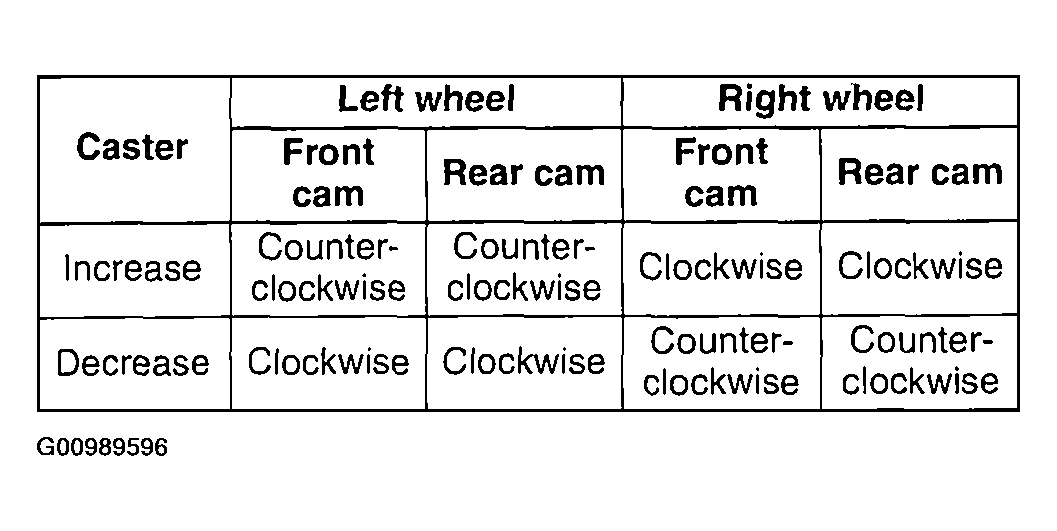

Fig 3: Identifying Caster Bolt Adjustments (Front)
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Turning the front cam one graduation on the scale changes the caster angle about 25' and the camber about 29' . Turning the rear cam one graduation changes the caster angle about 25' and the camber about 2' .
Adjust the camber and the toe-in.
