No. 5: No Temperature Control With Front Climate Control Unit: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

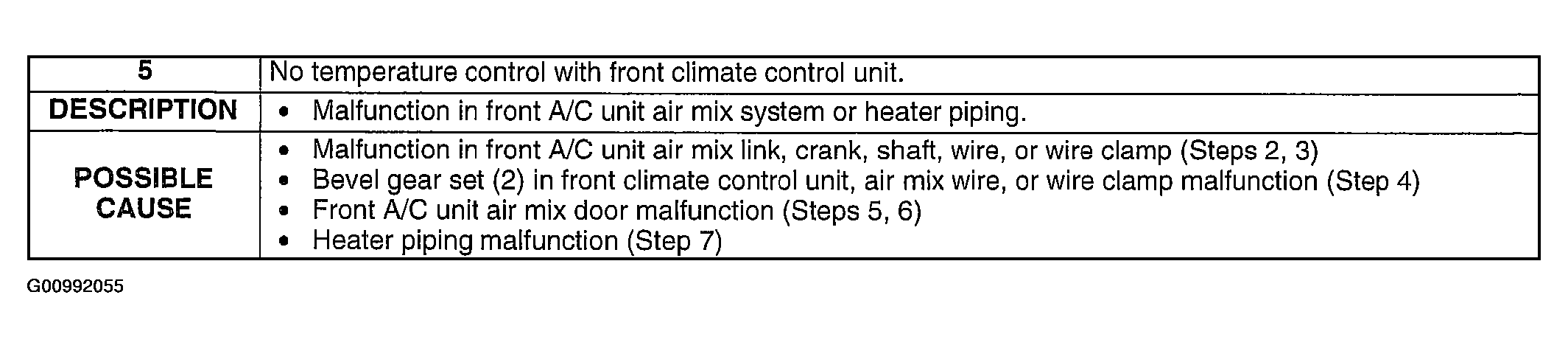

Fig 1: Possible Causes - No Temperature Control With Front Climate Control Unit
G00992055Courtesy of MAZDA MOTORS CORP.
