Oil Pan Removal/Installation: Notes

1. Disconnect the negative battery cable.
2. Remove the air cleaner component.
   CAUTION:

   • Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.
3. Remove the ABS wheel-speed sensor.
4. Drain the engine oil. See ENGINE OIL REPLACEMENT  .

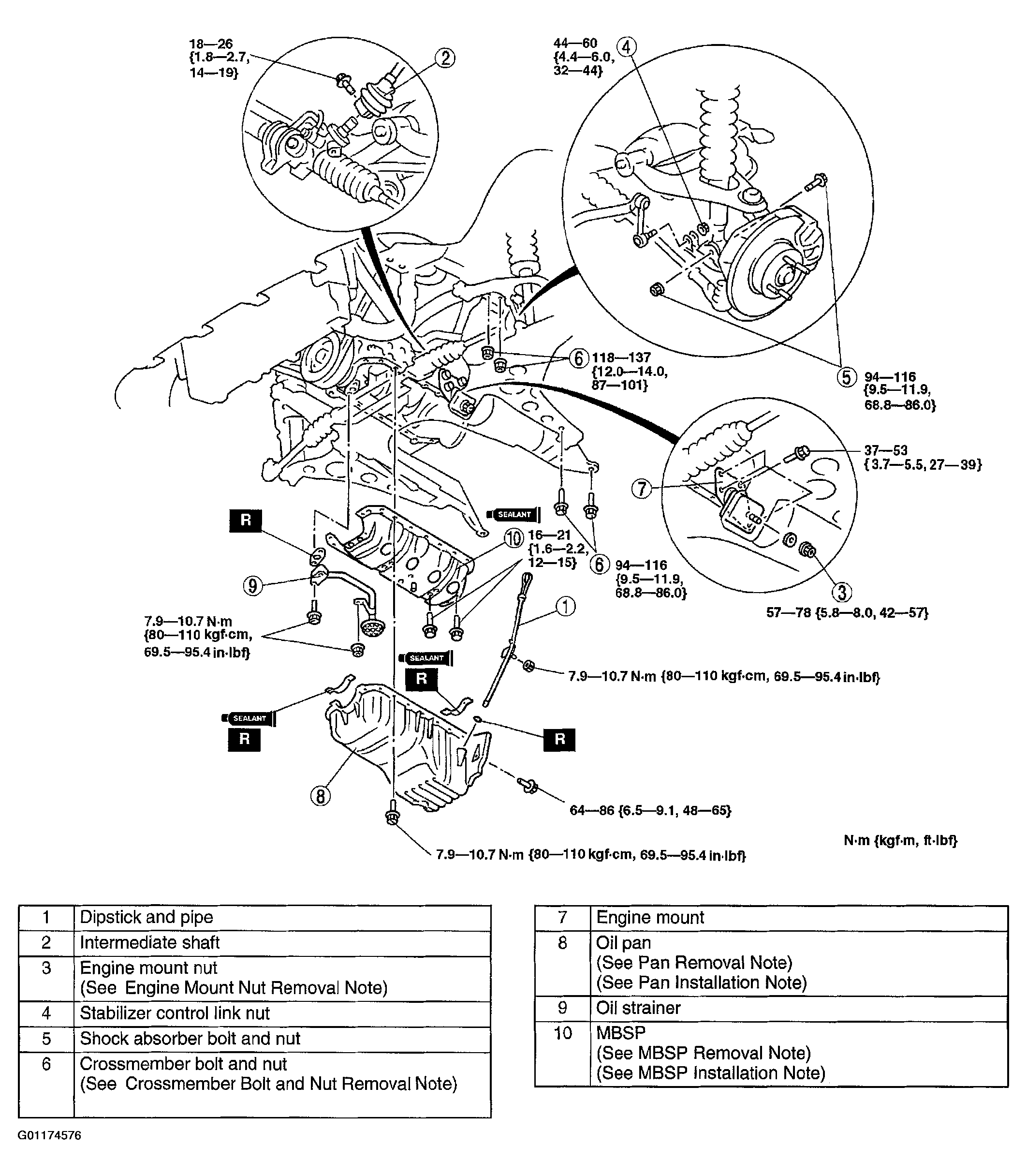

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
