Home >> Mazda >> 2002 >> MX-5 Miata LS, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Lubrication System Location Index

Lubrication System Location Index

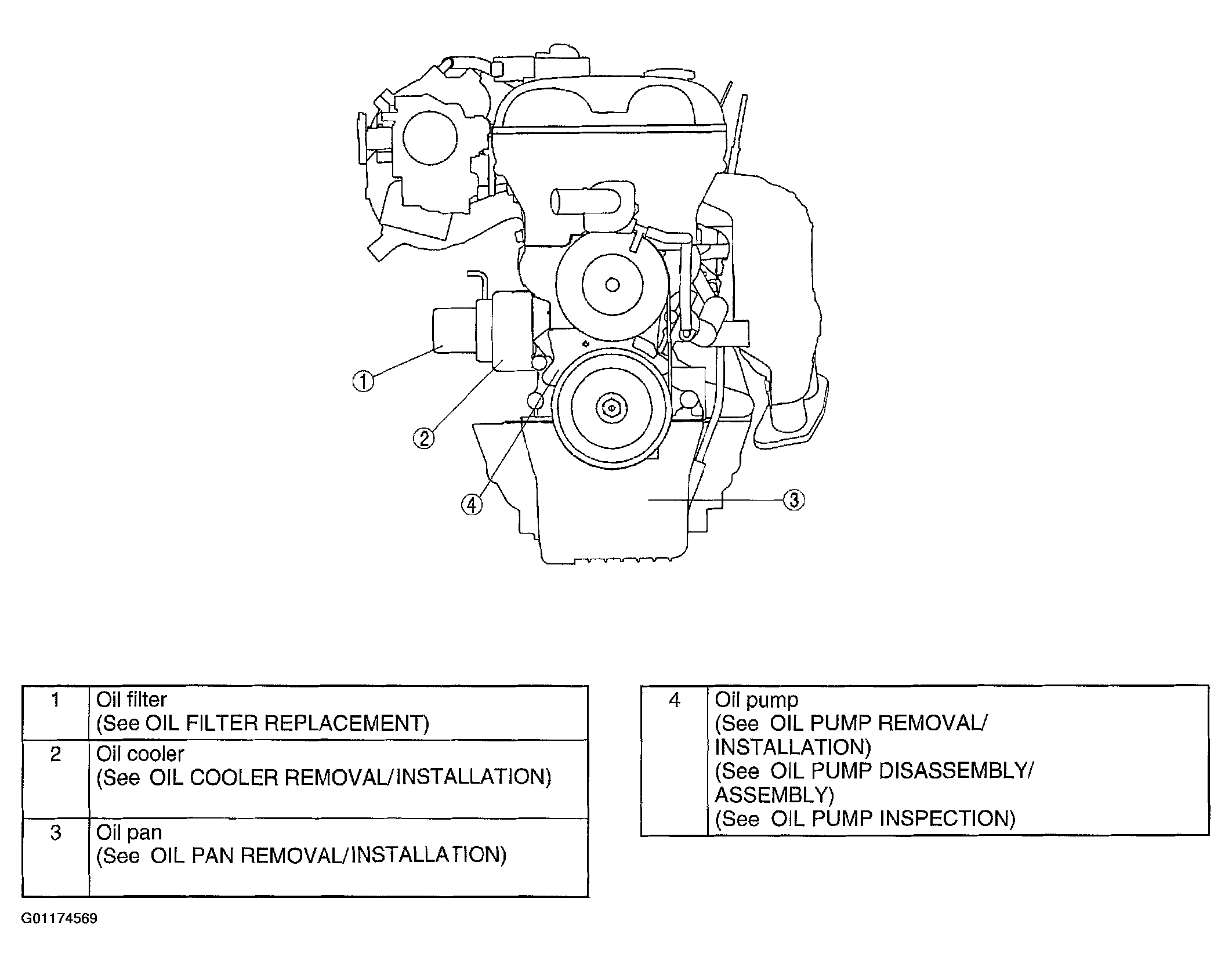

Fig 1: Locating Lubrication System Components

G01174569

Courtesy of MAZDA MOTORS CORP.
