Radiator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. See ENGINE COOLANT REPLACEMENT  .
  3. Remove the air hose.
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

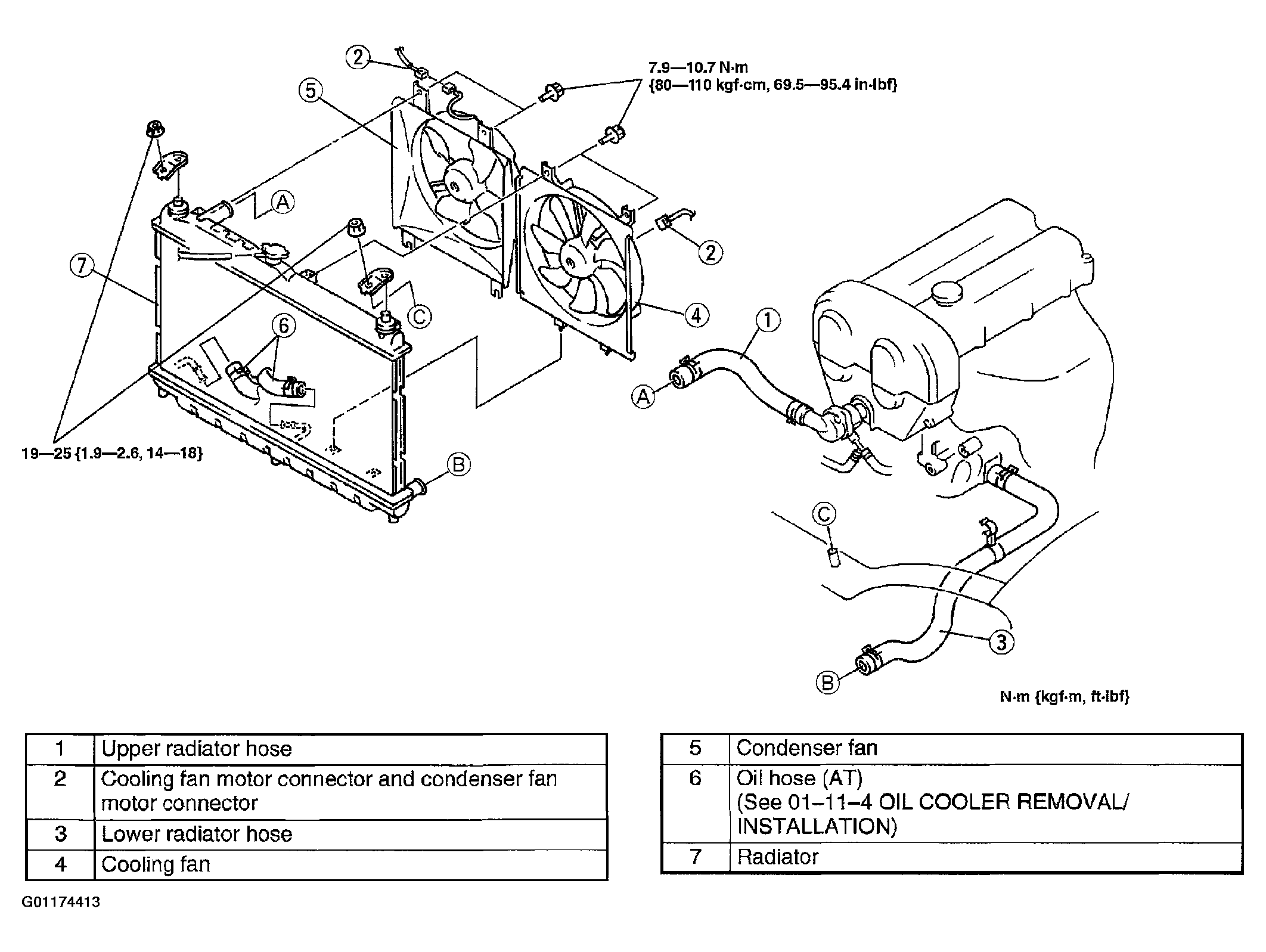

    Fig 1: Removing & Installing Radiator
    G01174413Courtesy of MAZDA MOTORS CORP.
