Instrument Cluster Disassembly/Assembly

CAUTION:
  • If the instrument cluster is dropped or damaged, the system will not work properly and it may be the cause of trouble or malfunction.
  1. Disassemble in the order indicated in the table.

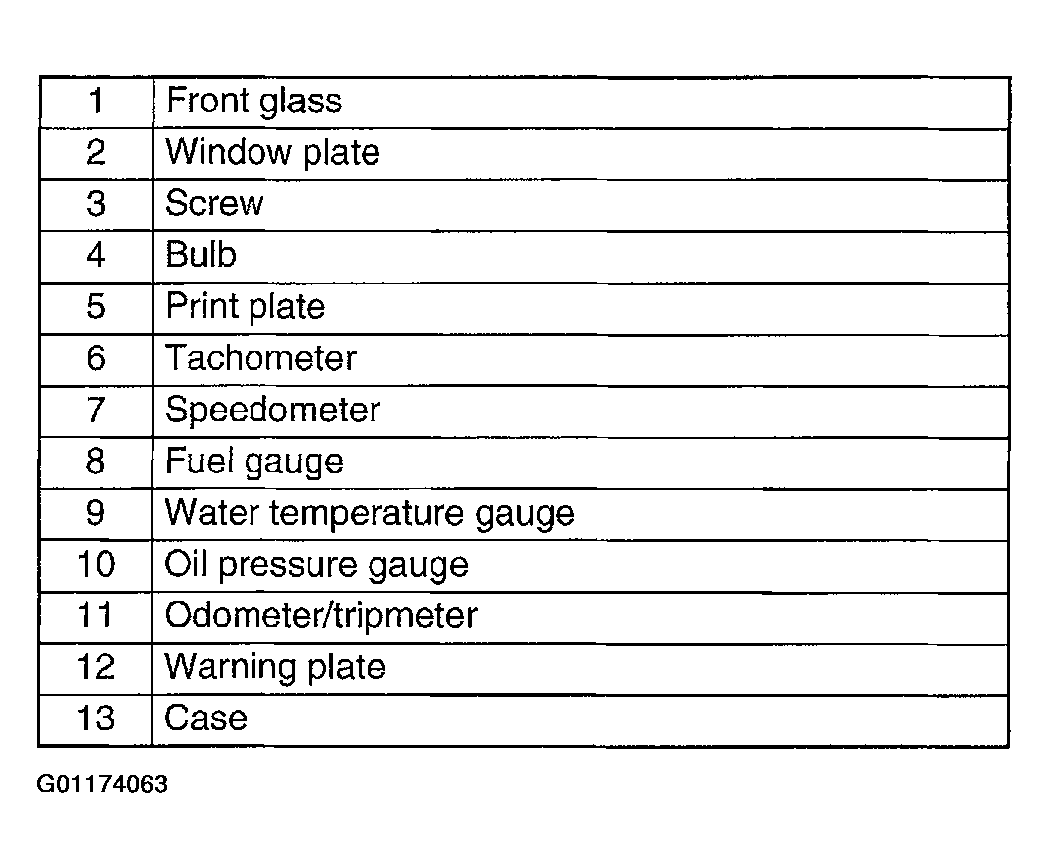

    Fig 1: Instrument Cluster Disassembly Sequence Table
    G01174063Courtesy of MAZDA MOTORS CORP.

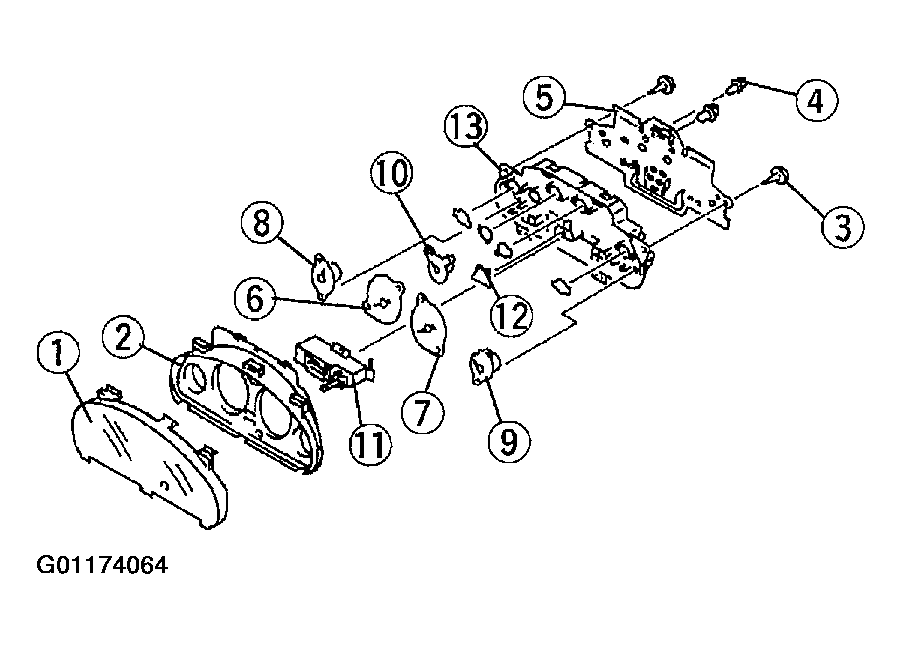

    Fig 2: Exploded View Of Instrument Cluster
    G01174064Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
