Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

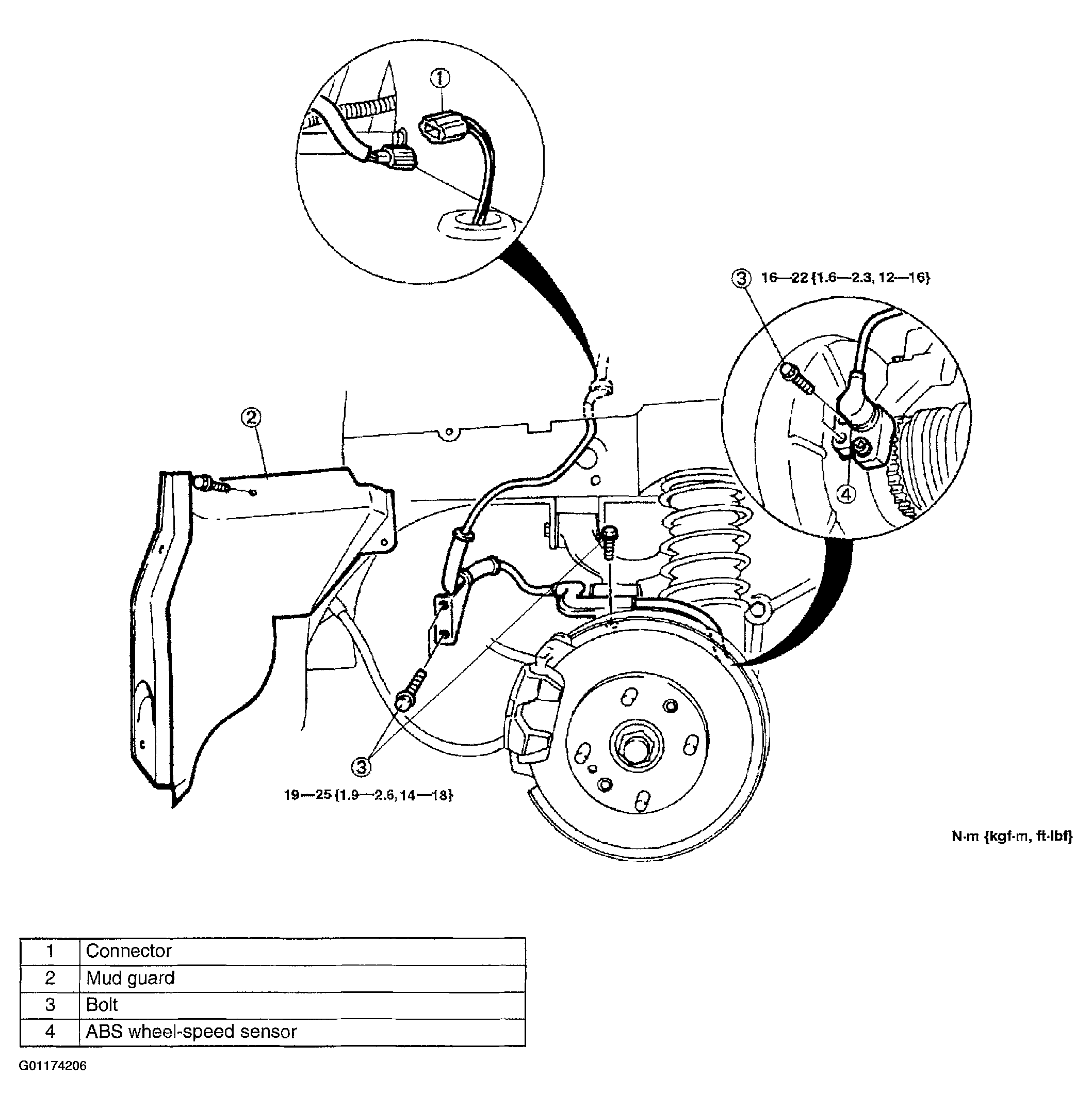

    Fig 1: Rear ABS Wheel-Speed Sensor Removal & Installation Sequence Table
    G01174206Courtesy of MAZDA MOTORS CORP.
