Using SST (WDS or equivalent)

  1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the steering column.
  2. Retrieve DTC with WDS or equivalent.

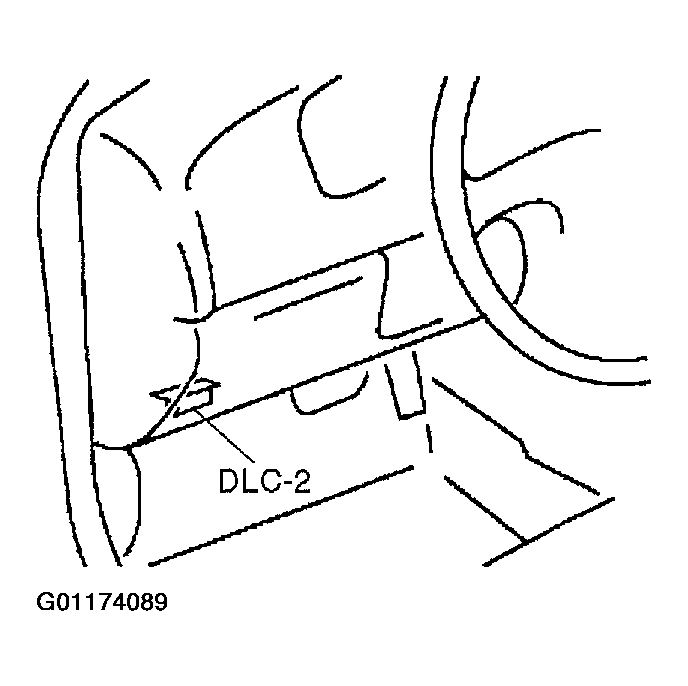

    Fig 1: Locating DLC-2 16-Pin Connector
    G01174089Courtesy of MAZDA MOTORS CORP.
