Coil Removal/Installation

NOTE:

Do not remove the coil unless you are replacing it.
When only the coil is replaced, the immobilizer system reprogram procedure is not necessary.

Disconnect the negative battery cable.
Remove the column cover.
Remove in the order indicated in table.

Fig 1: Coil Removal Sequence Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing & Installing Coil
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

NOTE:

Install the hook 1 to the steering lock.
Install the hook 2 to the steering lock.

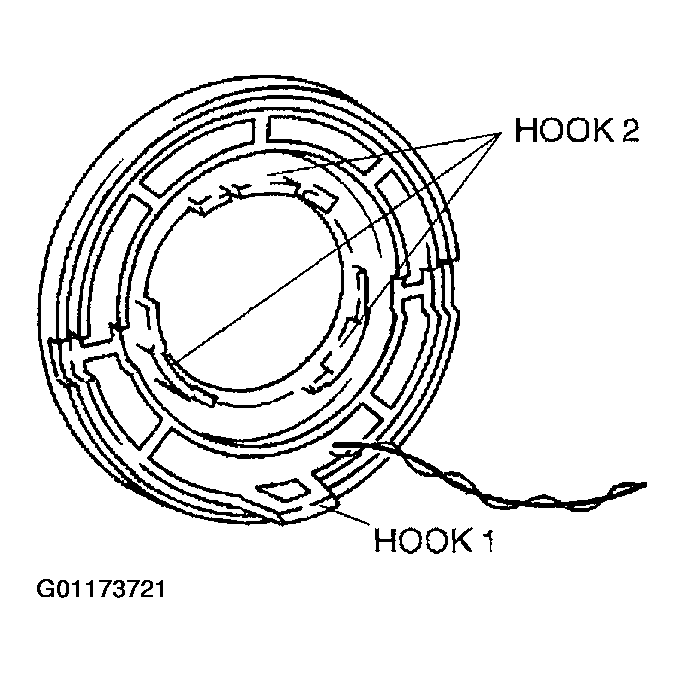

Fig 3: Locating Hook 1 & 2
Courtesy of MAZDA MOTORS CORP.
