Clutch Unit Removal/Installation: Notes

NOTE:
  • The clutch release cylinder can be removed from the transmission with the clutch pipe connected.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

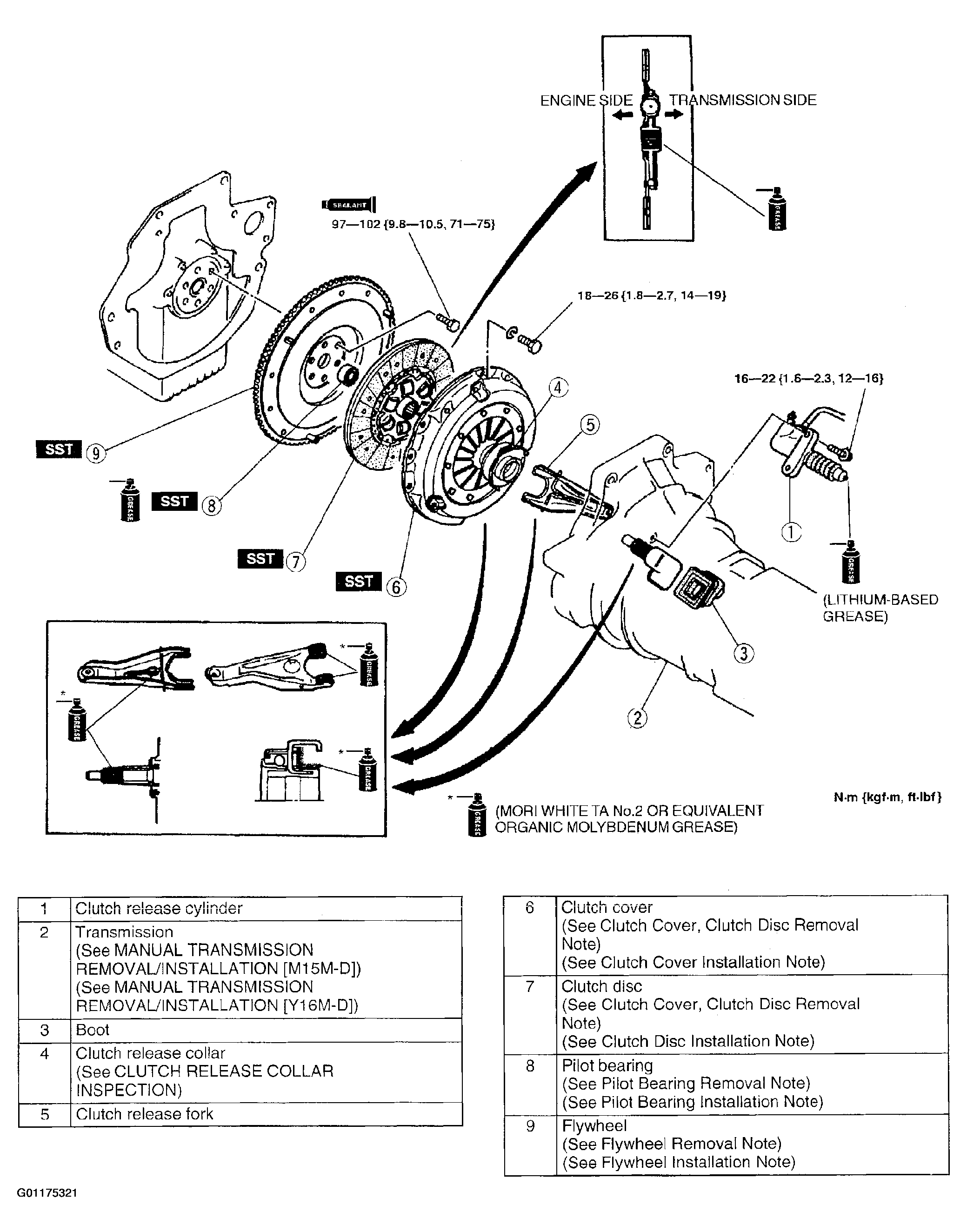

Fig 1: Removing & Installing Clutch Unit
G01175321Courtesy of MAZDA MOTORS CORP.
