Steering Lock Mounting Bolts and Bracket Assembly Note

  1. Install the steering lock component. Install the new steering lock mounting bolts. Tighten the bolts until the heads break off.

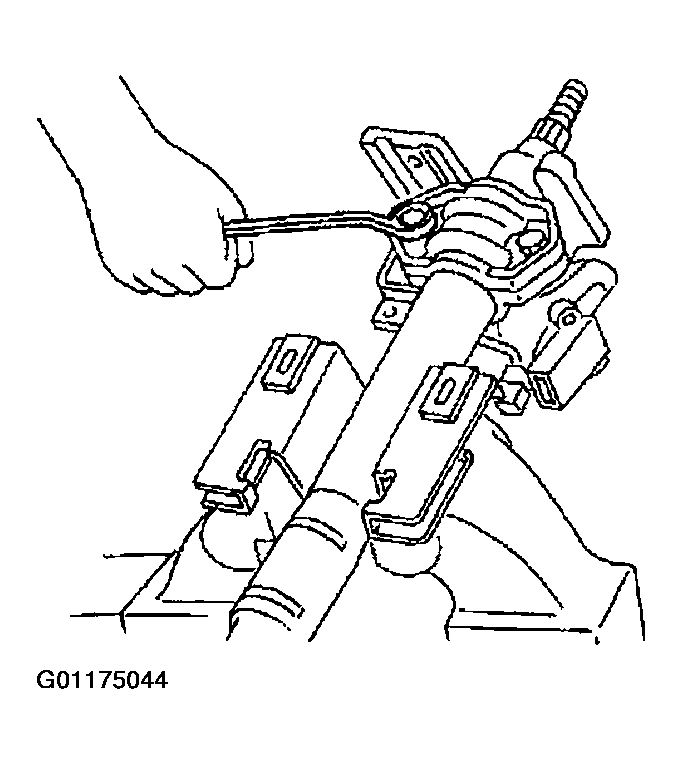

Fig 1: Assembling Steering Lock Mounting Bolts & Bracket
G01175044Courtesy of MAZDA MOTORS CORP.
