MX-5 Miata Base, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Steering System
>>
Steering SST
Steering SST

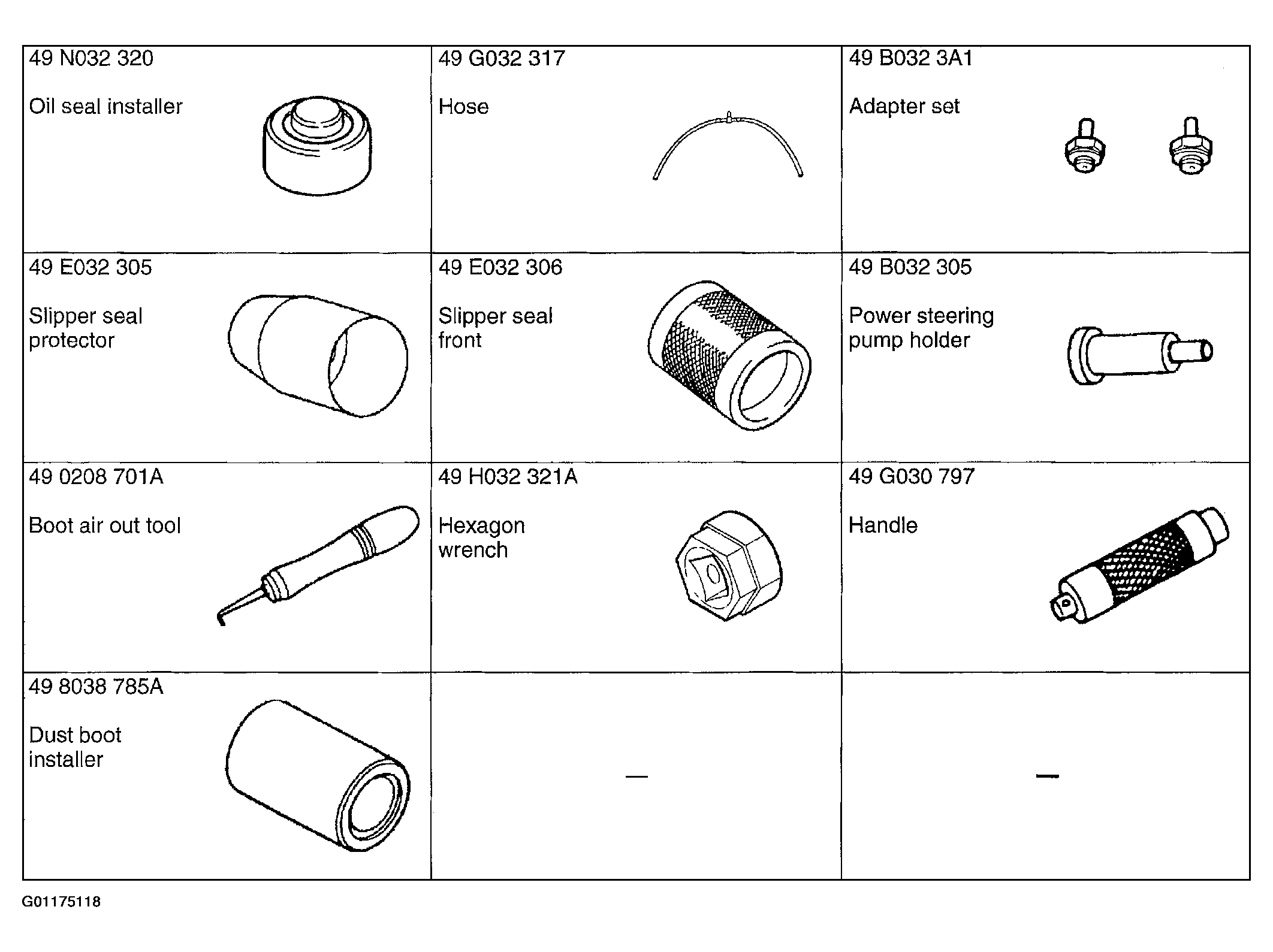

Fig 1: Steering Special Tools (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

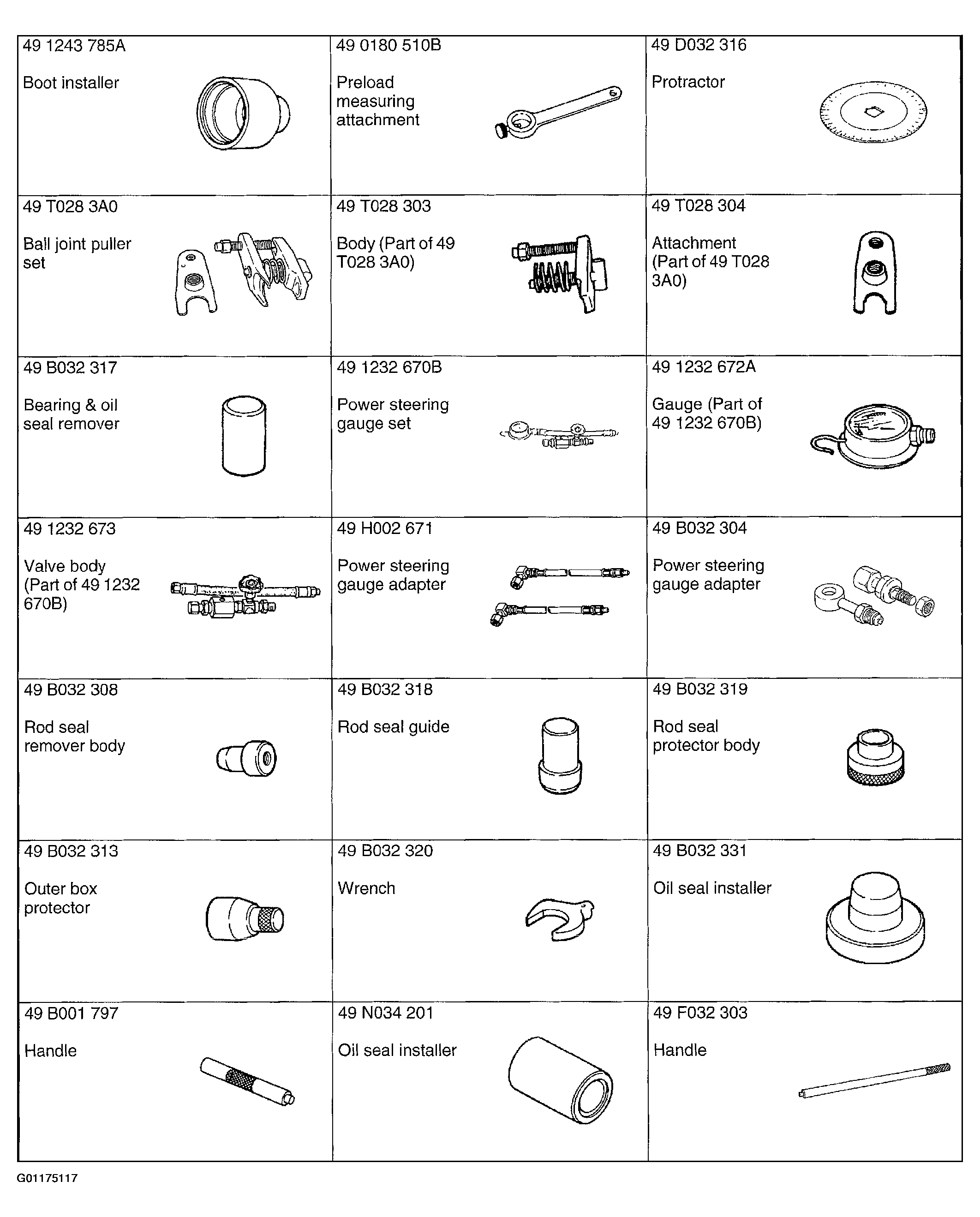

Fig 2: Steering Special Tools (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
