Steering Gear And Linkage Removal/Installation (Engine Speed Sensing Power Steering): Notes

CAUTION:

• Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, inspect the toe-in. See WHEEL ALIGNMENT .

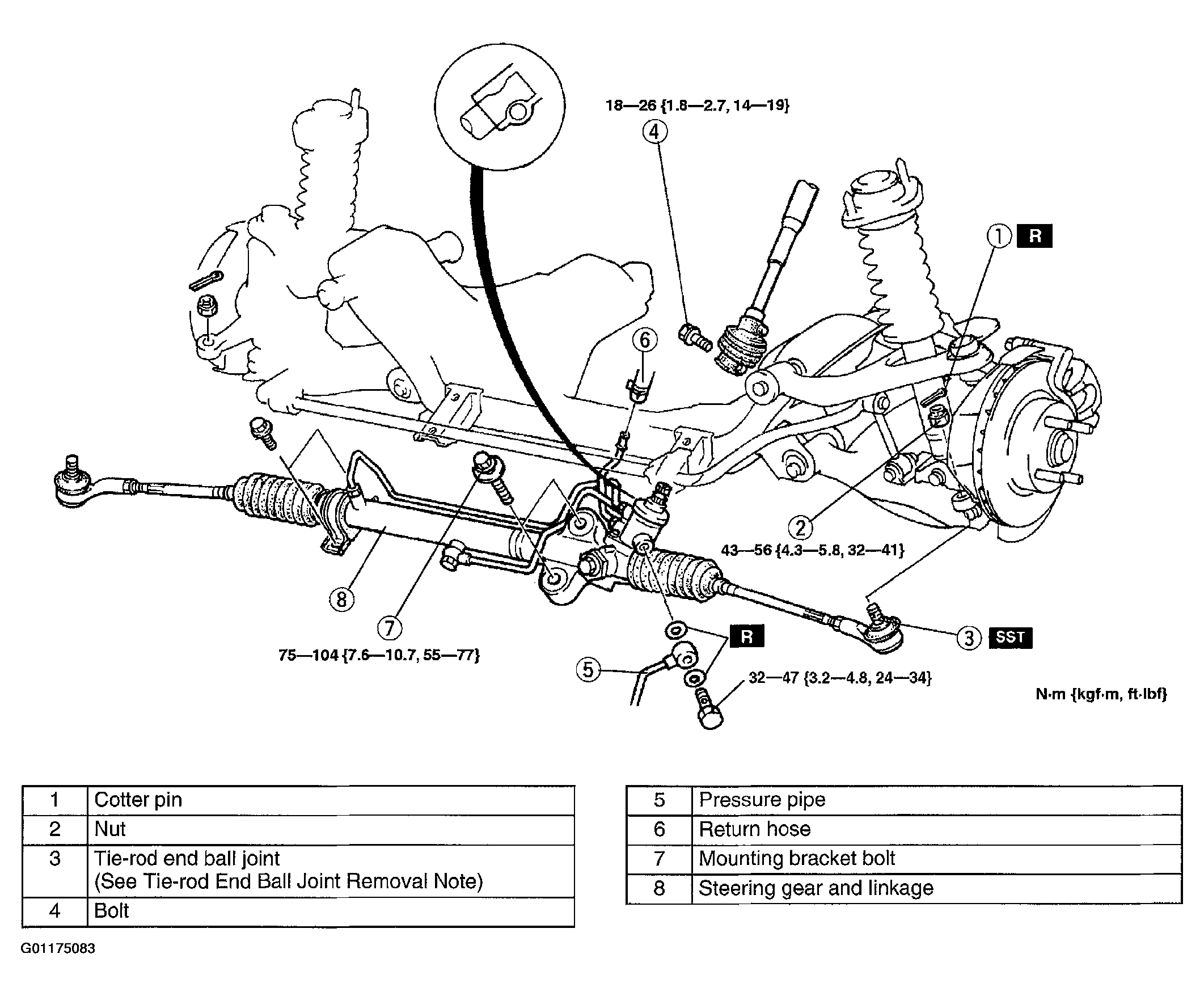

Fig 1: Removing & Installing Steering Gear & Linkage

Courtesy of MAZDA MOTORS CORP.
