Tie-rod End Boot Assembly Note

  1. Wipe the grease off the ball joint.
  2. Put a small amount of lithium-based grease into a new dust boot.
  3. Install the dust boot onto the tie-rod end using the SST  and a press.
  4. Wipe away any excessive grease.

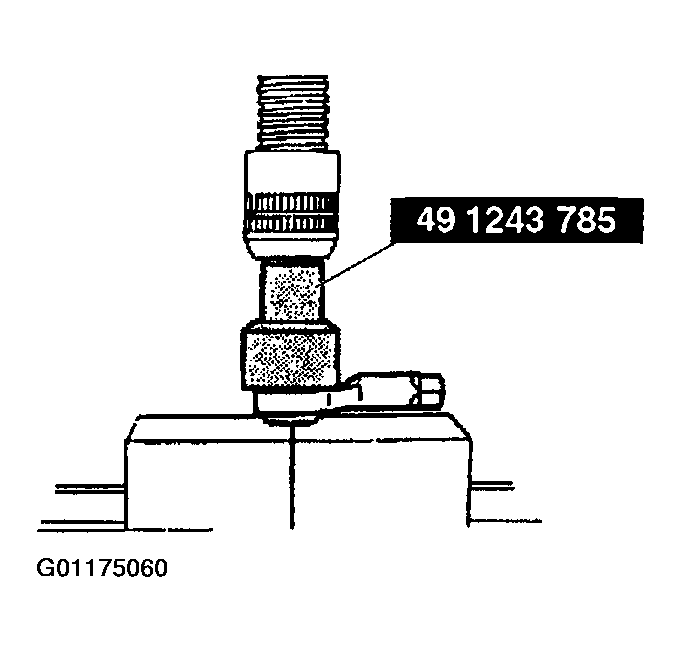

Fig 1: Assembling Tie-rod End Boot
G01175060Courtesy of MAZDA MOTORS CORP.
