Steering Rack Disassembly Note

  1. Remove the rack from the tube side.
    CAUTION:
    • Removing the rack from the tube side can damage the rack bushing by dragging the rack teeth across it. When removing the rack, remove it slowly and carefully.

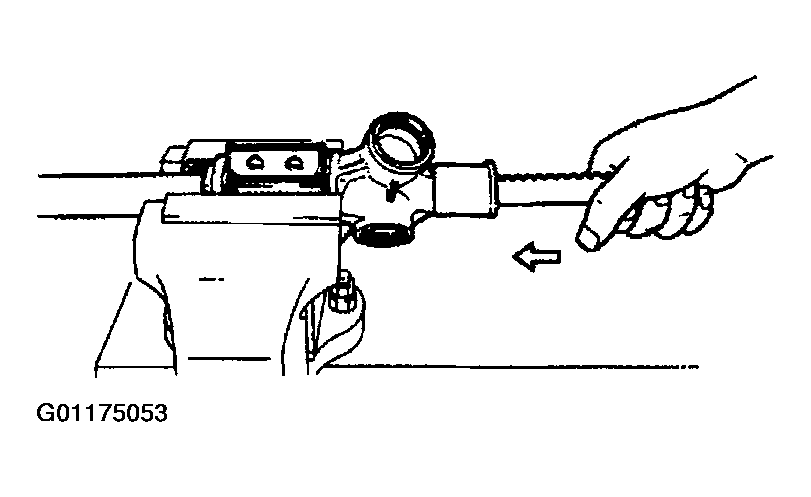

Fig 1: Removing Rack From Tube Side
G01175053Courtesy of MAZDA MOTORS CORP.
