Rack Bushing Disassembly Note

NOTE:
  • The rack bushing does not need to be removed unless it is being replaced.
  1. Depress the locking tab, and carefully remove the rack bushing.

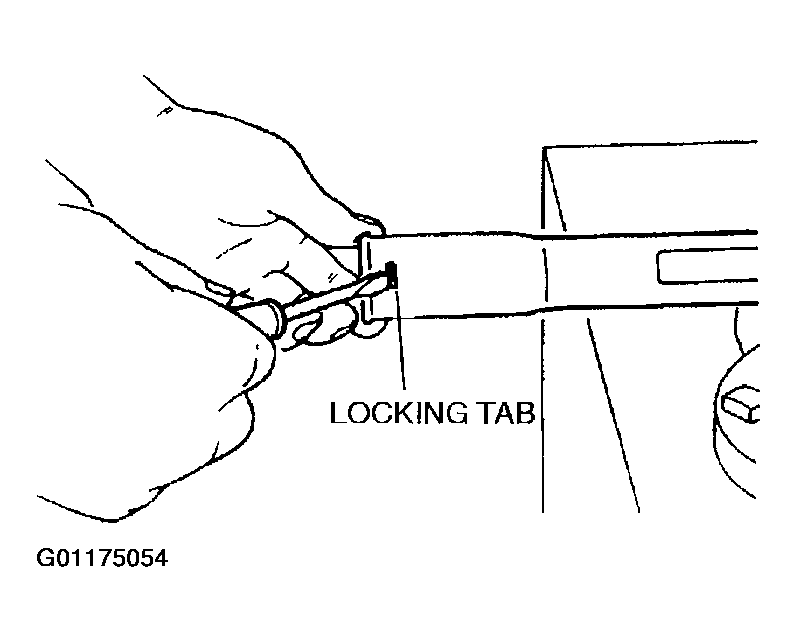

Fig 1: Locating Locking Tab
G01175054Courtesy of MAZDA MOTORS CORP.
