Pinion Shaft Assembly Note

  1. Apply grease to the inner race of the upper bearing and install it to the pinion shaft.
  2. Apply grease to the teeth of the pinion shaft.

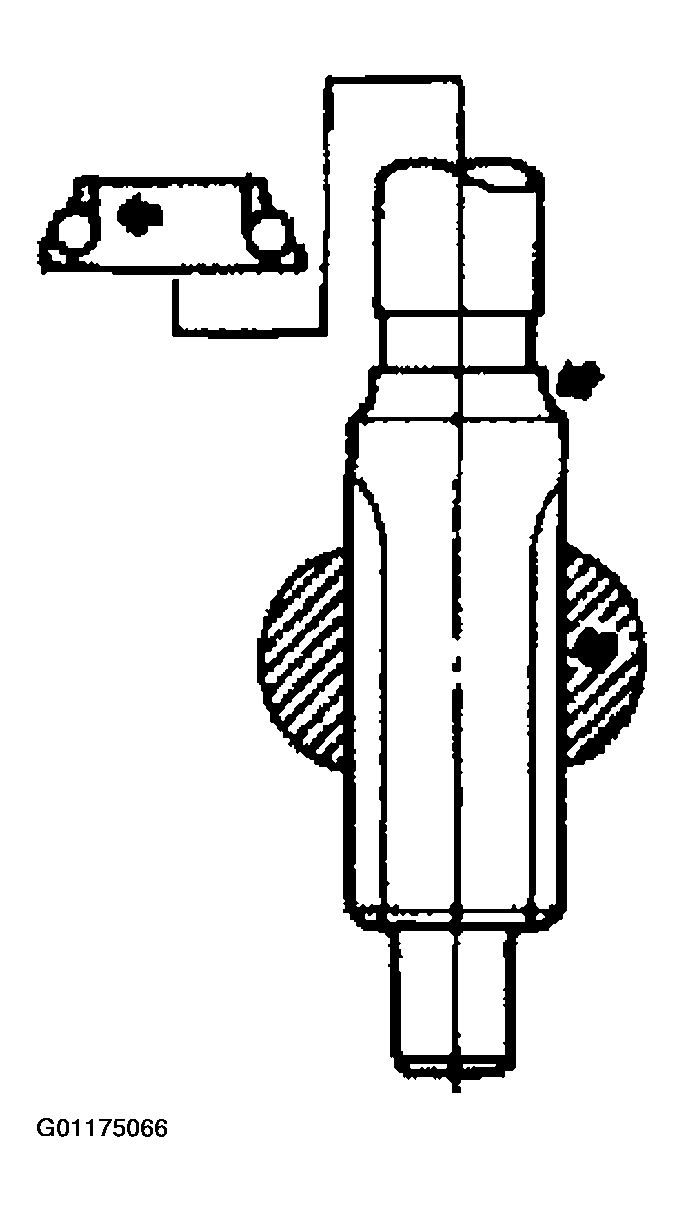

    Fig 1: Installing Inner Race Of Upper Bearing To Pinion Shaft
    G01175066Courtesy of MAZDA MOTORS CORP.
  3. Turn the flat section of the rack toward the pinion, and insert the pinion.

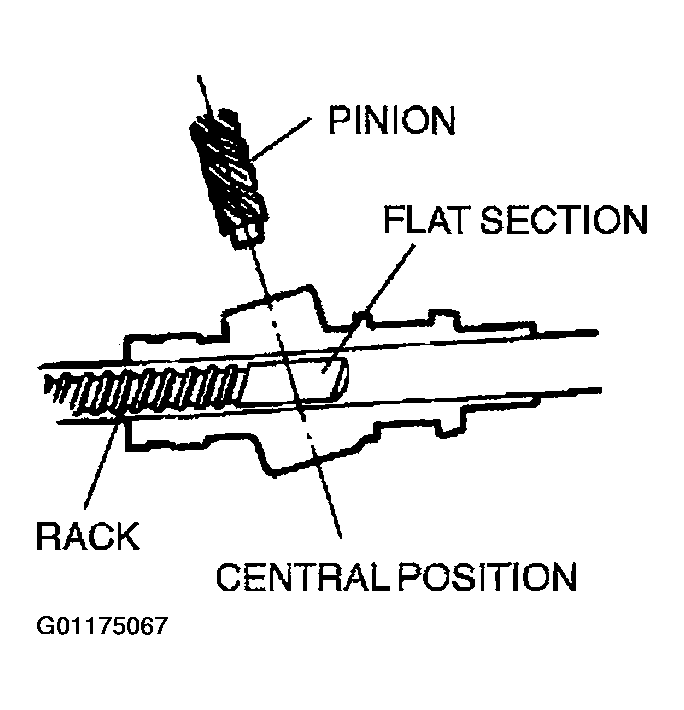

    Fig 2: Inserting Pinion
    G01175067Courtesy of MAZDA MOTORS CORP.
