Mounting Rubber Assembly Note

  1. Apply soapy water to the rubber part of the mounting rubber.
  2. Press the mounting rubber until the mounting rubber end comes out completely from the gear housing using the SSTs  and a press.

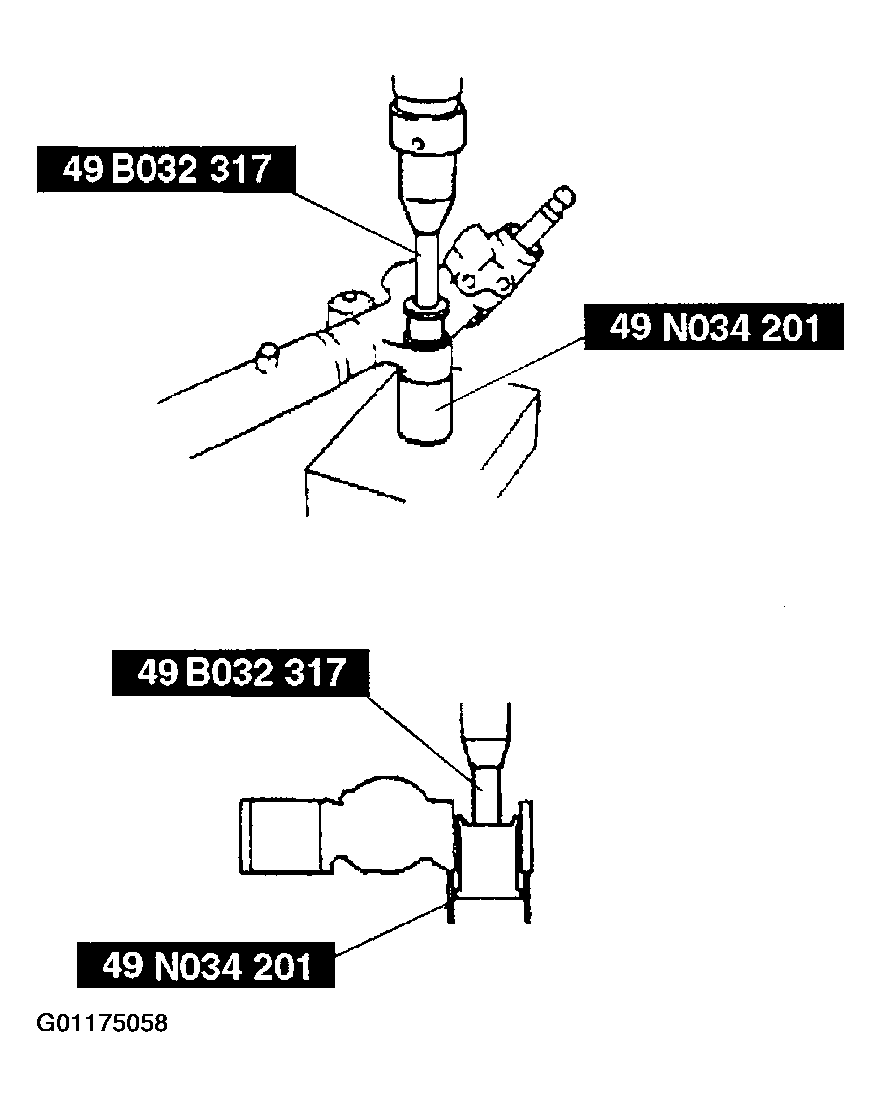

    Fig 1: Assembling Mounting Rubber (1 Of 2)
    G01175058Courtesy of MAZDA MOTORS CORP.
  3. Reverse the gear housing, then press the mounting rubber until the mounting rubber end comes out completely from the other side. At this time, mounting rubber end and steel pipe are aligned.

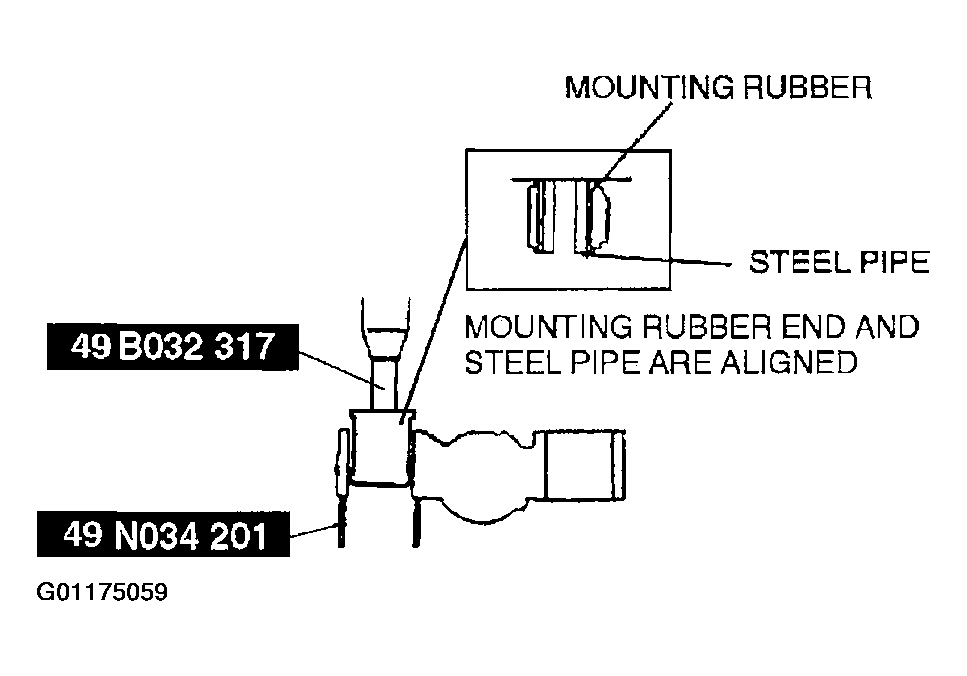

    Fig 2: Assembling Mounting Rubber (2 Of 2)
    G01175059Courtesy of MAZDA MOTORS CORP.
