Bushing Disassembly Note

NOTE:
  • The bushing does not need to be removed unless it is being replaced.
  1. Carefully break the bushing to remove it.

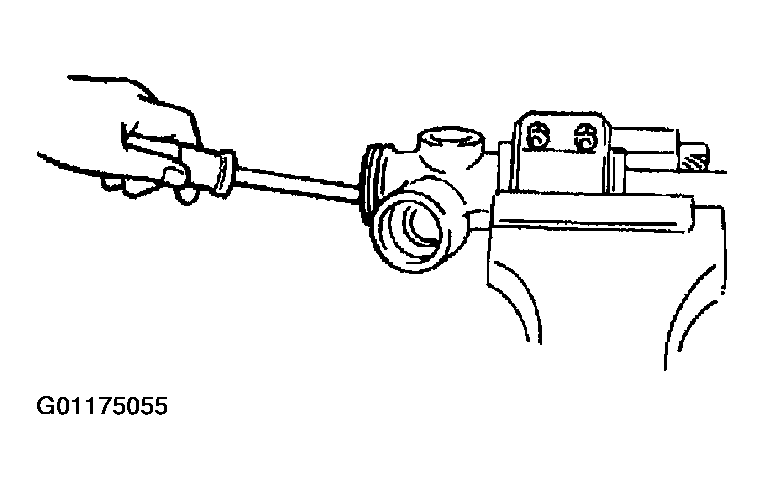

Fig 1: Removing Bushing
G01175055Courtesy of MAZDA MOTORS CORP.
