Upper Bearing Assembly Note

  1. Apply grease to a new upper bearing.
  2. Press in the upper bearing using the SST  .

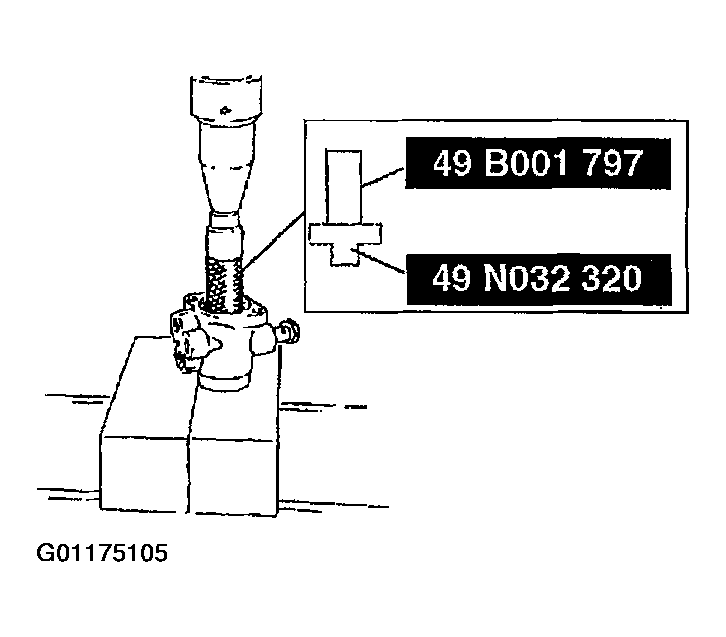

Fig 1: Assembling Upper Bearing
G01175105Courtesy of MAZDA MOTORS CORP.
