Steering Gear And Linkage Disassembly/Assembly (Engine Speed Sensing Power Steering): Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

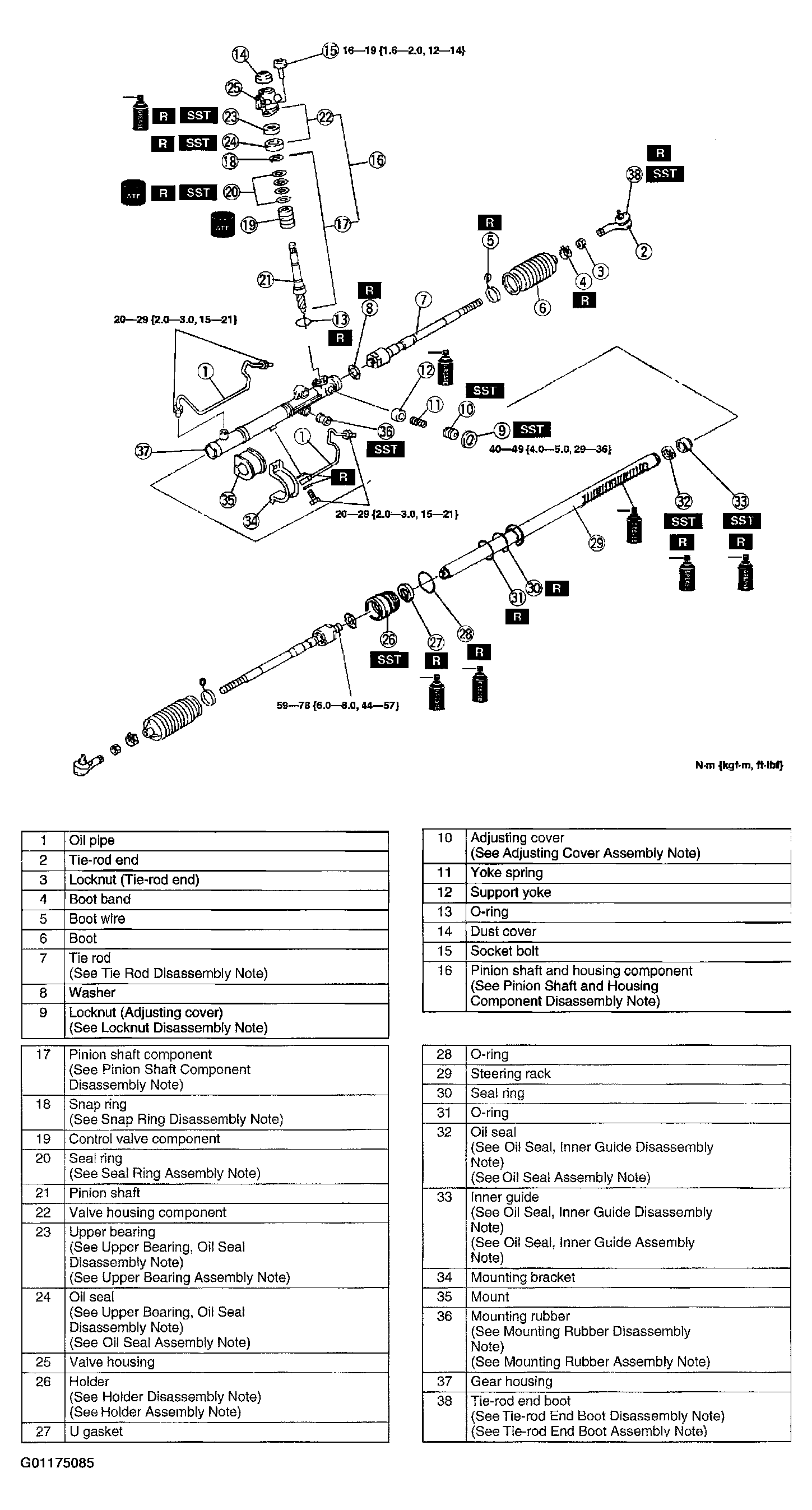

Fig 1: Disassembling & Assembling Steering Gear & Linkage
G01175085Courtesy of MAZDA MOTORS CORP.
