Vane Assembly Note

Place the vanes in the rotor with the rounded edges contacting the cam.

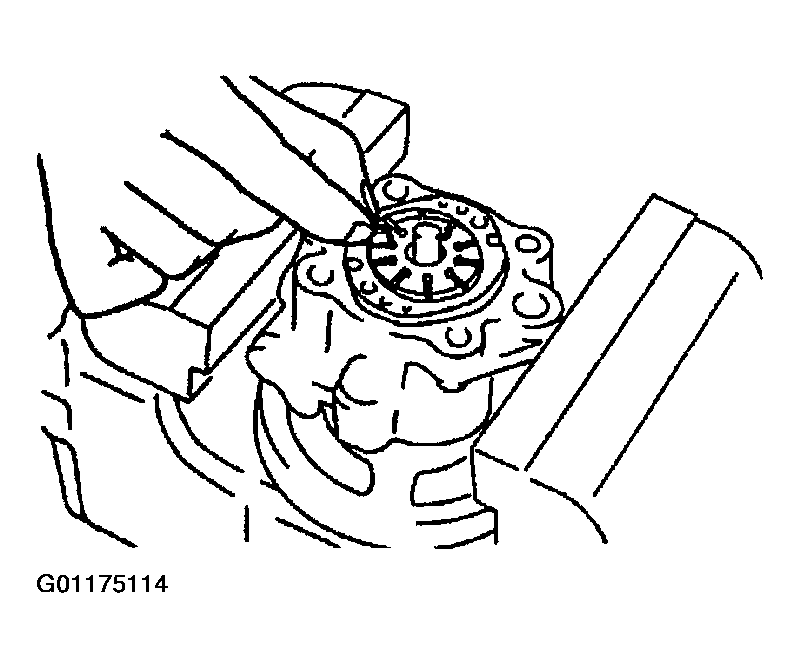

Fig 1: Assembling Vane

G01175114

Courtesy of MAZDA MOTORS CORP.
