Rotor Assembly Note

Install the rotor-with the identification mark facing upward.

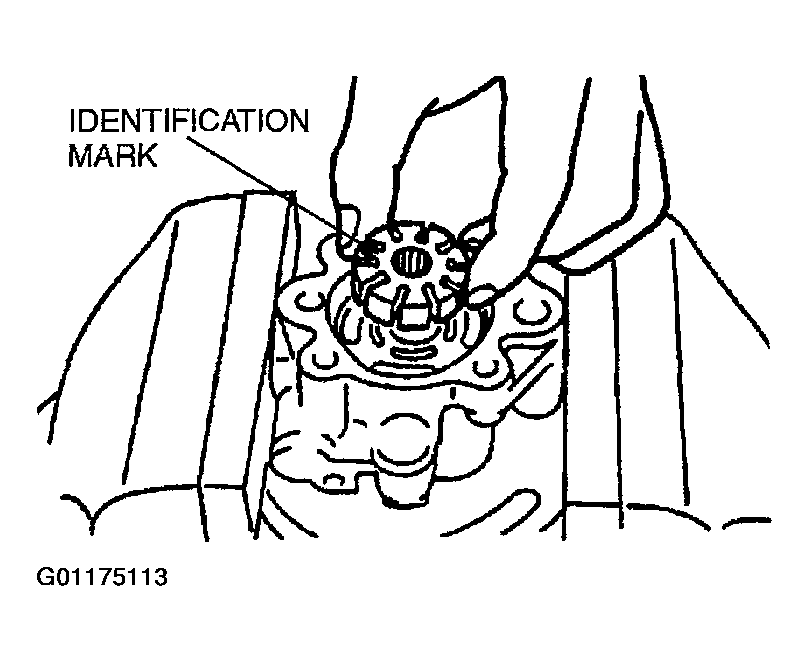

Fig 1: Assembling Rotor

G01175113

Courtesy of MAZDA MOTORS CORP.
